The OME Docker Launcher is a tool that simplifies the process of deploying and managing the OvenMediaEngine (OME) application using Docker containers. This tool can be used by developers and system administrators who want to quickly deploy and test the OME application in a Docker environment.
The OME Docker Launcher provides a set of commands that allow users to easily manage the OME Docker container. These commands include:
This command pulls the OME Docker image(airensoft/ovenmediaengine:latest) from the Docker registry and copies the necessary configuration files to a specified location. This command needs to be run before starting the OME Docker container.
This command creates and starts the Docker container. Once the container is started, the OME application can be accessed through a web browser using the container's IP address.
This command stops and then starts the OME Docker container.
Using the OME Docker Launcher, you can easily set up and manage an OME Docker container, without having to manually configure and manage the Docker container. This can save time and effort, especially for users who are not familiar with Docker or who do not want to spend time manually setting up and configuring the OME application.
OME Docker Launcher has not been tested in various environments yet. Therefore, sharing any issues that occur while using it is always welcome.
$ curl -OL 'https://raw.githubusercontent.com/AirenSoft/OvenMediaEngine/master/misc/ome_docker_launcher.sh' && chmod +x ome_docker_launcher.sh

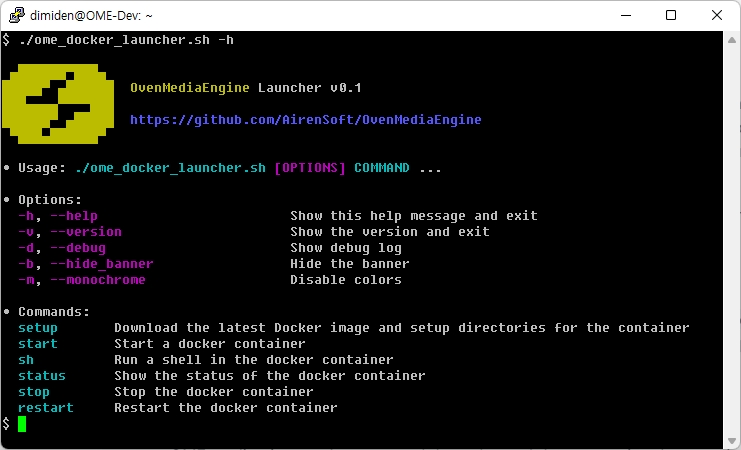

$ ./ome_docker_launcher.sh -h
▄██████▀███▄
█████▀ ▄██████ OvenMediaEngine Launcher v0.1
███▄▄▄▄▀▀▀▀███
██████▀ ▄█████ https://github.com/AirenSoft/OvenMediaEngine
▀███▄██████▀
• Usage: ./ome_docker_launcher.sh [OPTIONS] COMMAND ...
• Options:
-h, --help Show this help message and exit
-v, --version Show the version and exit
-d, --debug Show debug log
-b, --hide_banner Hide the banner
-m, --monochrome Disable colors
• Commands:
setup Download the latest Docker image and setup directories for the container
start Start a docker container
sh Run a shell in the docker container
status Show the status of the docker container
stop Stop the docker container
restart Restart the docker container
Commands
OME Docker Launcher can be executed in the following format:
• Usage: ./ome_docker_launcher.sh [OPTIONS] COMMAND ...
• Options:
-h, --help Show this help message and exit
-v, --version Show the version and exit
-d, --debug Show debug log
-b, --hide_banner Hide the banner
-m, --monochrome Disable colors
• Commands:
setup Download the latest Docker image and setup directories for the container
start Start a docker container
sh Run a shell in the docker container
status Show the status of the docker container
stop Stop the docker container
restart Restart the docker container
setup
The setup command pulls the OME Docker image from the Docker registry and copies the necessary configuration files to the host's /usr/share/ovenmediaengine directory. Additionally, it initializes the log path and crash dump path that will be mounted into the container when it is run.
This command prepares the host environment for running the OME Docker container and sets up the necessary directories and configurations for the container to run correctly.
If you run the "setup" command, the following files and directories will be created:
/usr/share/ovenmediaengine/conf
This directory contains the OME configuration files and is mounted into the container when it is run.
/usr/share/ovenmediaengine/logs
This directory is the log path for OME and is mounted into the container when it is run. Log files generated by OME will be stored in this directory.
/usr/share/ovenmediaengine/dumps
This directory is the crash dump path for OME and is mounted into the container when it is run. Crash dumps generated by OME will be stored in this directory.
$ ./ome_docker_launcher.sh setup
▄██████▀███▄
█████▀ ▄██████ OvenMediaEngine Launcher v0.1
███▄▄▄▄▀▀▀▀███
██████▀ ▄█████ https://github.com/AirenSoft/OvenMediaEngine
▀███▄██████▀
• Creating configuration directory /usr/share/ovenmediaengine/conf
• Copying configuration to /usr/share/ovenmediaengine/conf
• Copying logs directory
• Copying crash dump directory
• OvenMediaEngine is ready to start!
If you want to change the settings, please modify /usr/share/ovenmediaengine/conf/Server.xml
If you want to start OvenMediaEngine, please run ./ome_docker_launcher.sh start
If you want to change the configuration of OME, you can edit the /usr/share/ovenmediaengine/conf/Server.xml file. This file contains the server configuration settings for OME, such as the server's IP address, port, and SSL settings. Once you have made changes to this file, you will need to restart the OME Docker container for the changes to take effect. You can do this by running the restart command provided by the OME Docker Launcher.
Certificate Installation
To install a certificate in OvenMediaEngine, copy the certificate files to /usr/share/ovenmediaengine/conf with the following names:
Type
File name
Certificate
cert.crt
Private Key
cert.key
CA Bundle
cert.ca-bundle
If you want to change the file names, you can modify Server.xml.
start
Once the setup phase is complete, you can use the start command to run the OME Docker container. The start command creates and starts the Docker container, enabling the OME application to receive stream packets using protocols such as RTMP and SRT. Before running the start command, ensure that the necessary configuration files have been copied to the host's /usr/share/ovenmediaengine directory by running the setup command.
$ ./ome_docker_launcher.sh start
▄██████▀███▄
█████▀ ▄██████ OvenMediaEngine Launcher v0.1
███▄▄▄▄▀▀▀▀███
██████▀ ▄█████ https://github.com/AirenSoft/OvenMediaEngine
▀███▄██████▀
• Starting OvenMediaEngine...
• Obtaining the port list from /usr/share/ovenmediaengine/conf/Server.xml
- RTMP Provider is configured to use 1935 (Port)
- SRT Provider is configured to use 9999 (Port)
- WebRTC Provider is configured to use 3333 (Port)
- WebRTC Provider is configured to use 3334 (TLSPort)
- WebRTC Provider is configured to use 10000-10004/UDP (IceCandidate)
- WebRTC Provider is configured to use 3478 (TcpRelay)
- OVT Publisher is configured to use 9000 (Port)
- LLHLS Publisher is configured to use 3333 (Port)
- LLHLS Publisher is configured to use 3334 (TLSPort)
- WebRTC Publisher is configured to use 3333 (Port)
- WebRTC Publisher is configured to use 3334 (TLSPort)
- WebRTC Publisher is configured to use 10000-10004/UDP (IceCandidate)
- WebRTC Publisher is configured to use 3478 (TcpRelay)
• Starting a container: ovenemediaengine
docker> 7235ff9f80762b6e7b27ba3a9773f5584033d55c113340dabf0779e8f5cf53bb
• OvenMediaEngine is started successfully!
When running the OME Docker Launcher, you can specify the IP to be used as an ICE Candidate by using the OME_HOST_IP environment variable. For instance, specifying the OME_HOST_IP as shown below will propagate the ICE Candidate to that particular address.
$ OME_HOST_IP=1.2.3.4 ./ome_docker_launcher.sh start
...
• OvenMediaEngine is started successfully!
$ tail -f /usr/share/ovenmediaengine/logs/ovenmediaengine.log
...
[2023-11-01 00:00:00.000] I [OvenMediaEngine:1] ICE | ice_port_manager.cpp:305 | ICE candidate found: 1.2.3.4:40000
...
The OME Docker Launcher automatically detects a list of port numbers specified in the Server.xml file and passes them to the Docker -p option. However, if you use the include attribute inside the <Providers> or <Publishers> element, the launcher may not detect them correctly.
If you have declared the following environment variable in the shell where you run the OME Docker Launcher, this value will be used to bind the port and passed into the Docker container. This enables you to dynamically set configuration values using environment variables.
The sh command allows you to enter into the shell of the running container. You can use this command for troubleshooting purpose. Once you enter into the container's shell, you can execute any commands just like you do in a normal Linux shell. This allows you to inspect the container's internal state and debug any issues that you might be facing with the container or the application running inside it.
$ ./ome_docker_launcher.sh sh
▄██████▀███▄
█████▀ ▄██████ OvenMediaEngine Launcher v0.1
███▄▄▄▄▀▀▀▀███
██████▀ ▄█████ https://github.com/AirenSoft/OvenMediaEngine
▀███▄██████▀
• Run a shell in the running container: ID: 7235ff9f8076
root@7235ff9f8076:/opt/ovenmediaengine/bin# ps -ef
UID PID PPID C STIME TTY TIME CMD
root 1 0 0 10:29 ? 00:00:01 /opt/ovenmediaengine/bin/OvenMediaEngine -c origin_conf
root 53 0 0 10:44 pts/0 00:00:00 /bin/bash
root 61 53 0 10:44 pts/0 00:00:00 ps -ef
root@7235ff9f8076:/opt/ovenmediaengine/bin# top -bn1
top - 10:44:44 up 333 days, 3:33, 0 users, load average: 0.44, 0.78, 0.78
Tasks: 3 total, 1 running, 2 sleeping, 0 stopped, 0 zombie
%Cpu(s): 1.4 us, 0.3 sy, 0.0 ni, 98.3 id, 0.0 wa, 0.0 hi, 0.0 si, 0.0 st
MiB Mem : 128723.7 total, 10529.4 free, 31268.5 used, 86925.7 buff/cache
MiB Swap: 31250.0 total, 30345.8 free, 904.2 used. 96221.5 avail Mem
PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND
1 root 20 0 320136 21812 15772 S 0.0 0.0 0:01.48 OvenMediaEngine
53 root 20 0 4116 3456 2896 S 0.0 0.0 0:00.01 bash
62 root 20 0 5972 3160 2732 R 0.0 0.0 0:00.00 top
root@7235ff9f8076:/opt/ovenmediaengine/bin#
status
The status command shows the current execution status of the container. If the container is running, it displays the ID and name of the container. This command helps you to verify whether the container is up and running or not. If the container is not running, you can use the start command to start the container.
If you encounter any problems during the execution, try using the -d option in the [OPTIONS] to view detailed logs. This option shows the command sets and their results that are executed internally.
If OME terminates abnormally, providing the crash dump to the OME team can be helpful. The crash dump is stored in the /usr/share/ovenmediaengine/dumps directory, which is created during the setup phase. You can find the dump file named crash_<yyyymmdd>.dump in this directory.
Sharing those log and dump file would be greatly appreciated and helpful for the development of OME.
