# Quick Start

This page provides the fastest way to check playback of WebRTC and LLHLS using OvenMediaEngine. For installation and detailed settings, please refer to other pages.

## Run OvenMediaEngine

Run docker with the command below. `OME_HOST_IP` must be an IP address accessible by the player.

```sh
$ docker run --name ome -d -e OME_HOST_IP=Your.HOST.IP.Address \
-p 1935:1935 -p 9999:9999/udp -p 9000:9000 -p 3333:3333 -p 3478:3478 -p 10000-10009:10000-10009/udp \
airensoft/ovenmediaengine:0.17.2
```

<details>

<summary>Check Status</summary>

You can check the docker container status with the following command:

```bash
$ docker ps -f name=ome
CONTAINER ID   IMAGE                              COMMAND                  CREATED              STATUS              PORTS                                                                                                                                                                                                                                                                                                           NAMES
c9dd9e56d7a0   airensoft/ovenmediaengine:latest   "/opt/ovenmediaengin…"   About a minute ago   Up About a minute   0.0.0.0:1935->1935/tcp, :::1935->1935/tcp, 80/tcp, 0.0.0.0:3333->3333/tcp, :::3333->3333/tcp, 3334/tcp, 8080/tcp, 0.0.0.0:3478->3478/tcp, :::3478->3478/tcp, 4000-4005/udp, 8090/tcp, 0.0.0.0:9000->9000/tcp, :::9000->9000/tcp, 10010/udp, 0.0.0.0:9999-10009->9999-10009/udp, :::9999-10009->9999-10009/udp   ome
```

You can view the log with the command below. This is important because you can check the version of OvenMediaEngine that is running.

```
$ docker logs ome -f
[2023-03-06 08:01:24.810] I [OvenMediaEngine:1] Config | config_manager.cpp:239  | Trying to set logfile in directory... (/var/log/ovenmediaengine)
[2023-03-06 08:01:24.810] I [OvenMediaEngine:1] Config | config_manager.cpp:261  | Trying to load configurations... (origin_conf/Server.xml)
[2023-03-06 08:01:24.816] I [OvenMediaEngine:1] OvenMediaEngine | banner.cpp:23   | OvenMediaEngine v0.15.1 () is started on [ab3995acafd4] (Linux x86_64 - 5.13.0-44-generic, #49~20.04.1-Ubuntu SMP Wed May 18 18:44:28 UTC 2022)
...
```

</details>

## Run OvenPlayer Demo&#x20;

```bash
$ docker run -d -p 8090:80 airensoft/ovenplayerdemo:latest
```

<details>

<summary>Check Status</summary>

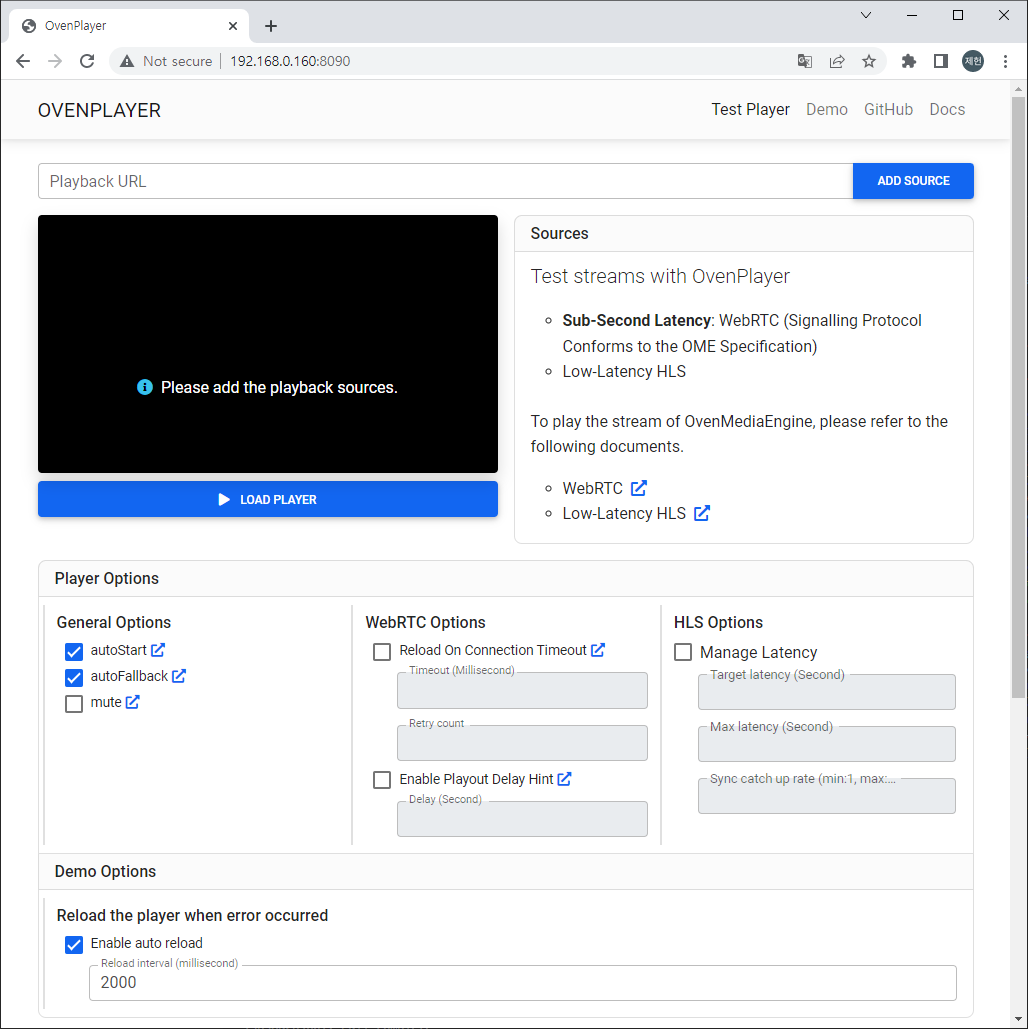

You can access the OvenPlayerDemo docker container with a browser as shown below.

<http://Your.Docker.Host.IP:8090/>

<img src="https://content.gitbook.com/content/Tm7JqRKrETzzCo4QB23l/blobs/YWPgwwA2zV4FHEhI5SIQ/image.png" alt="" data-size="original">

</details>

## Publishing

Publish your live stream to OvenMediaEngine using a live encoder like [OBS](https://obsproject.com/).&#x20;

<details>

<summary>Ingest URLs</summary>

**RTMP** - rtmp\://Your.Docker.Host.IP:1935/app/stream

**SRT** - srt://Your.Docker.Host.IP:9999?streamid=srt%3A%2F%2FYour.Docker.Host.IP%3A9999%2Fapp%2Fstream

**WHIP** - <http://Your.Docker.Host.IP:3333/app/stream?direction=whip>

</details>

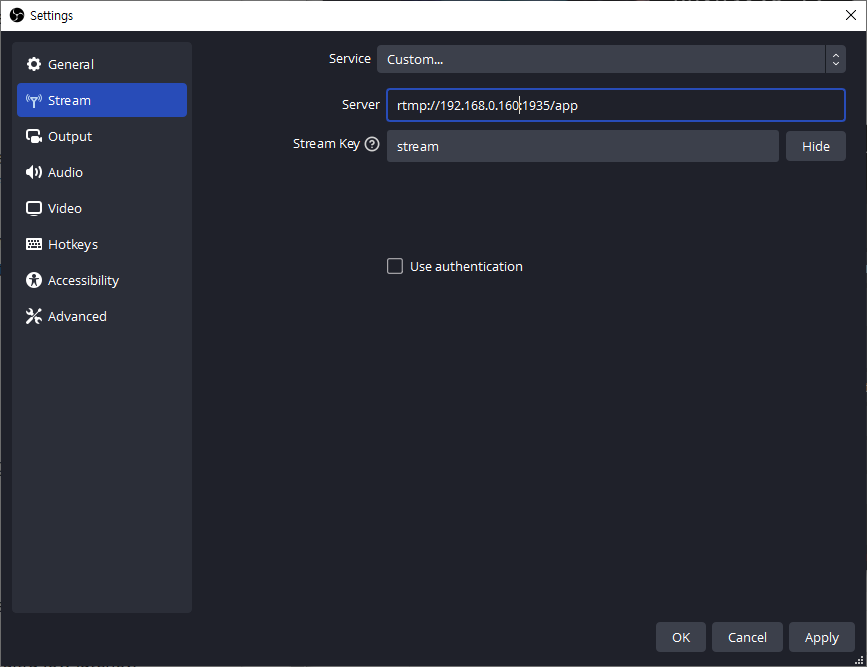

The RTMP publishing address is :&#x20;

**Server** `rtmp://Your.Docker.Host.IP:1935/app`

**Stream Key** `stream`

<figure><img src="https://content.gitbook.com/content/Tm7JqRKrETzzCo4QB23l/blobs/rPZ33bh1JJQK3r46w2TS/image.png" alt=""><figcaption></figcaption></figure>

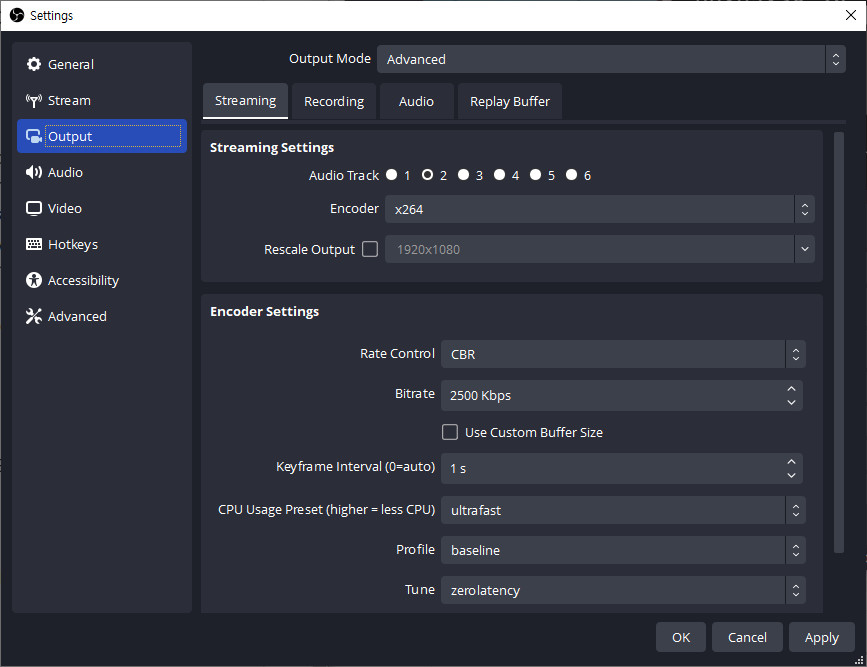

The settings below are recommended for ultra-low latency.&#x20;

| Setting           | Value                                                                                                                                                       |
| ----------------- | ----------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Keyframe Interval | 1s <mark style="color:red;">(DO NOT set it to</mark> <mark style="color:red;"></mark><mark style="color:red;">**0**</mark><mark style="color:red;">)</mark> |
| CPU Usage Preset  | ultrafast                                                                                                                                                   |
| Profile           | baseline                                                                                                                                                    |
| Tune              | zerolatency                                                                                                                                                 |

<figure><img src="https://content.gitbook.com/content/Tm7JqRKrETzzCo4QB23l/blobs/xqHNOcMIAvZCfwpLtBqv/image.png" alt=""><figcaption></figcaption></figure>

## Playback

Open the installed OvenPlayer Demo page in your browser.&#x20;

`http://Your.Docker.Host.IP:8090/`

<figure><img src="https://content.gitbook.com/content/Tm7JqRKrETzzCo4QB23l/blobs/YWPgwwA2zV4FHEhI5SIQ/image.png" alt=""><figcaption></figcaption></figure>

#### WebRTC Playback

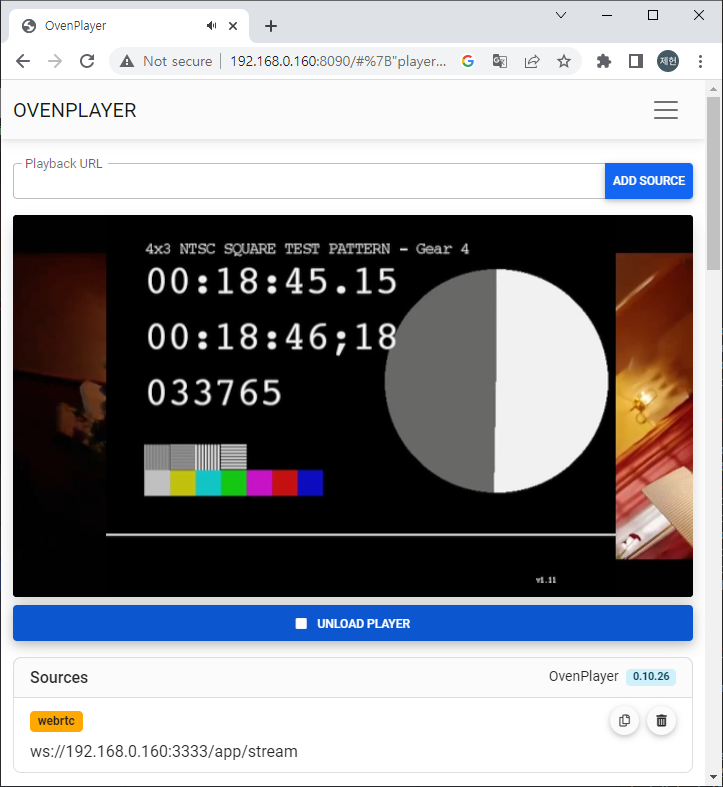

Add `ws://Your.Docker.Host.IP:3333/app/stream` to the Playback URL and click the ADD SOURCE and LOAD PLAYER button to play the live stream with WebRTC.

<figure><img src="https://content.gitbook.com/content/Tm7JqRKrETzzCo4QB23l/blobs/CcsSAgxrLM8rYnfsiG8N/image.png" alt=""><figcaption></figcaption></figure>

#### LLHLS Playback

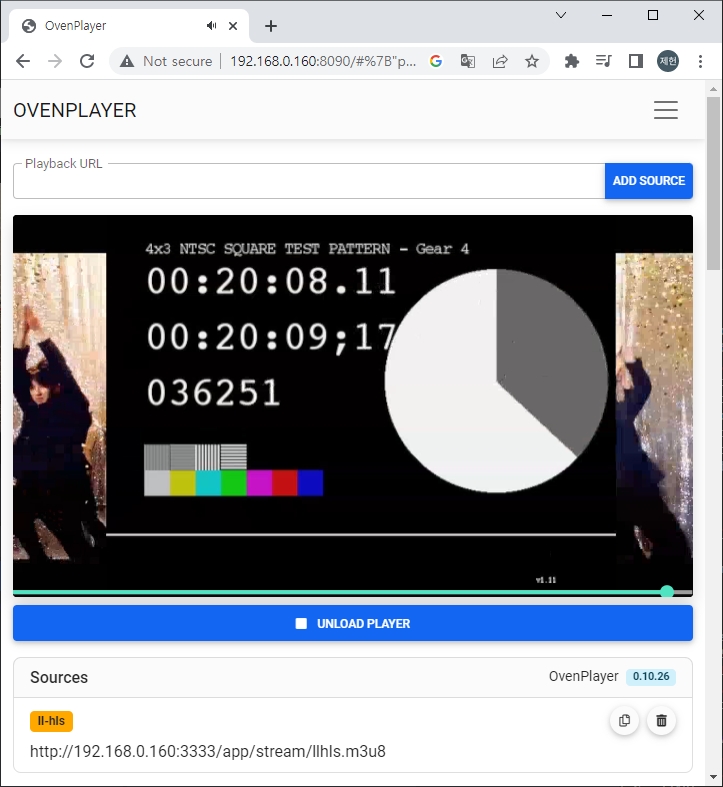

Add `http://Your.Docker.Host.IP:3333/app/stream/llhls.m3u8` to the Playback URL and click the ADD SOURCE and LOAD PLAYER button to play the live stream with LLHLS.

<figure><img src="https://content.gitbook.com/content/Tm7JqRKrETzzCo4QB23l/blobs/y9KKRyBD0B9jDu9rBD3f/image.png" alt=""><figcaption></figcaption></figure>
