ABR and Transcoding

Was this helpful?

OvenMediaEngine supports Live Transcoding for Adaptive Bitrate(ABR) streaming and protocol compatibility. Each protocol supports different codecs, and ABR needs to change resolution and bitrate in different ways. Using OutputProfile, codecs, resolutions, and bitrates can be converted, and ABR can be configured as a variety of sets using a Playlist.

This document explains how to configure encoding settings, set up playlists.

Transcoding

This section explains how to define output streams, change the codec, bitrate, resolution, frame rate, sample rate, and channels for video/audio, as well as how to use the bypass method.

Adaptive Bitrate (ABR) Stream

This section explains how to use a Playlist to assemble ABR streams by selecting tracks encoded in various qualities.

TranscodeWebhook

The transcoding webhook feature is used when dynamic changes to encoding and ABR configuration are needed based on the type or quality of the input stream.

Support Codecs

These are the types of supported decoding and encoding codecs.

Video

  • VP8, H.264, H.265

Audio

  • AAC, Opus, MP3

Video

  • VP8, H.264, H.265

Audio

  • AAC, Opus


  • Jpeg, Png, WebP

Hardware accelerators

These are the types of hardware accelerators officially supported.

  • NVIDIA GPU

  • Xilinx Alveo U30 MA

  • NILOGAN (experiment)

  • Quick Sync Video (deprecated)

Transcoding
ABR
TranscodeWebhook

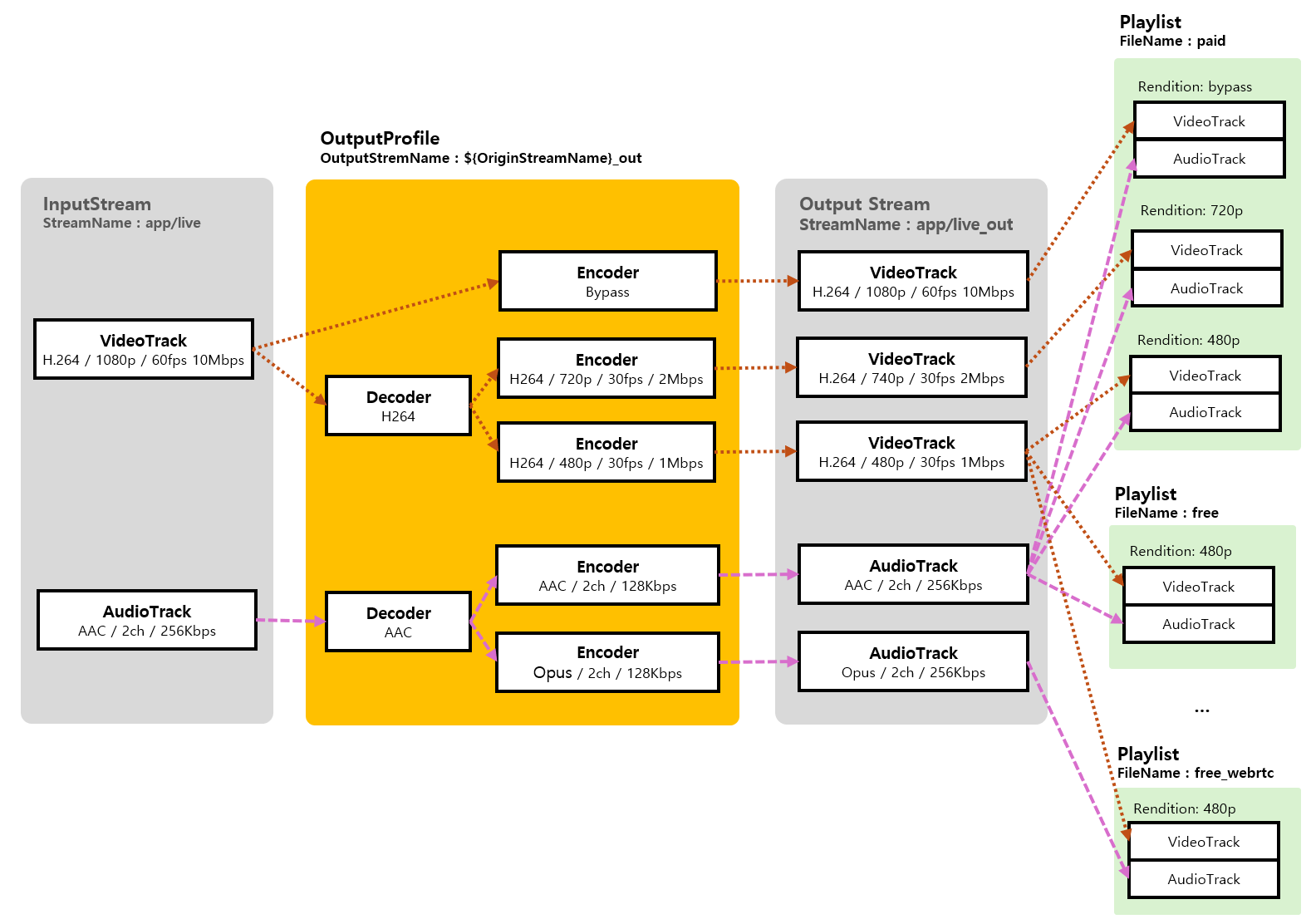

Transcoding and Adaptive Streaming Architecture
