SignedPolicy is a module that limits the user's privileges and time. For example, operators can distribute RTMP URLs that can be accessed for 60 seconds to authorized users, and limit RTMP transmission to 1 hour. The provided URL will be destroyed after 60 seconds, and transmission will automatically stop after 1 hour. Users who are provided with a SignedPolicy URL cannot access resources other than the provided URL. This is because the SignedPolicy URL is authenticated.
SignedPolicy URL consists of the query string of the streaming URL with Policy and Signature as shown below. If SignedPolicy is enabled in the configuration of OvenMediaEngine, access to URLs with no signature or invalid signature is not allowed. Signature uses HMAC-SHA1 to authenticate all URLs except signature.
Policy is in JSON format and provides the following properties.
Signature is generated by HMAC-SHA1 encoding all URLs except signature query string. The generated Signature is encoded using and included as a query string of the existing URL.
The URL entered into HMAC to generate the Signature must include :port.
When creating a signature, you cannot omit the default port such as http port 80, https port 443, or rtmp port 1935. This is because when OvenMediaEngine creates a signature for checking the signature, it is created by putting the port value.
When using SignedPolicy with , only use the streamid portion of the URL, e.g. srt://myserver:9999?streamid=srt://myserver:9999/app/stream?policy=abc123
When using SignedPolicy with , you must generate the SignedPolicy using the streamid.
For example, to generate a SignedPolicy for the URL srt://1.2.3.4:9998?streamid=default/app/stream, you can use the following command:
To enable SignedPolicy, you need to add the following <SignedPolicy> setting in Server.xml under <VirtualHost>.
We provide a script that can easily generate SignedPolicy URL. The script can be found in the path below.
Here's how to use this script:

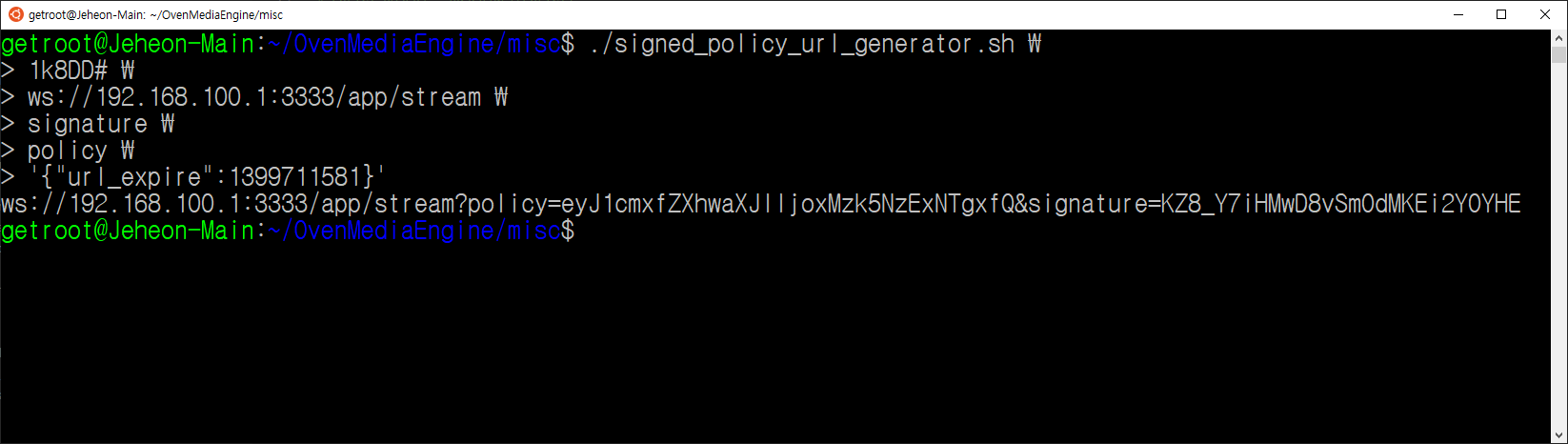

For example, you can use it like this:
We hope to provide SignedPolicy URL Generator Library in various languages. If you have created the SignedPolicy URL Generator Library in another language, please send a Pull Request to our . Thank you for your open source contributions.
In order to include the policy in the URL, it must be encoded with .
Policy encoded with Base64URL is added as a query string to the existing streaming URL. (The query string key is set in Server.xml.)
Signature hashes the entire URL including the policy in HMAC (SHA-1) method, encodes it as Base64URL, and includes it in the query string.
Create a hash using the secret key (1kU^b6 in the example) and the URL above using HMAC-SHA1.
If you include it as a signature query string (query string key is set in Server.xml), the following SignedPolicy URL is finally generated.

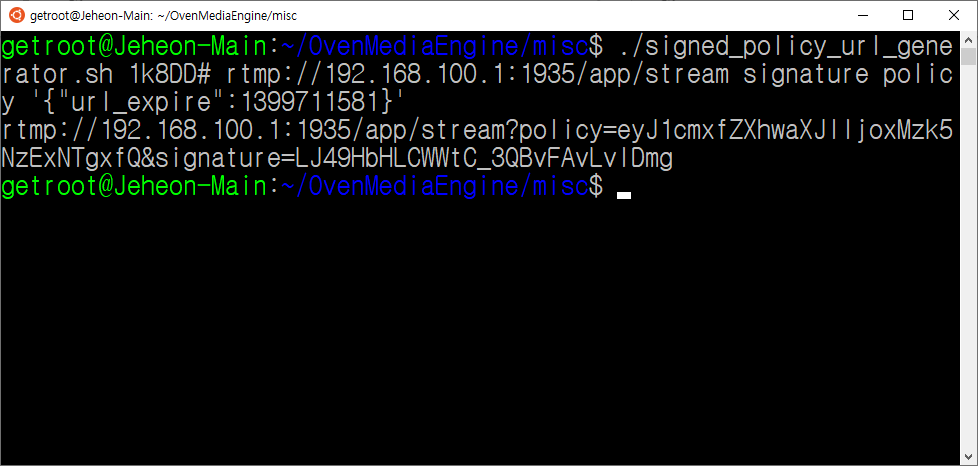

Generate SignedPolicy URL with the script.

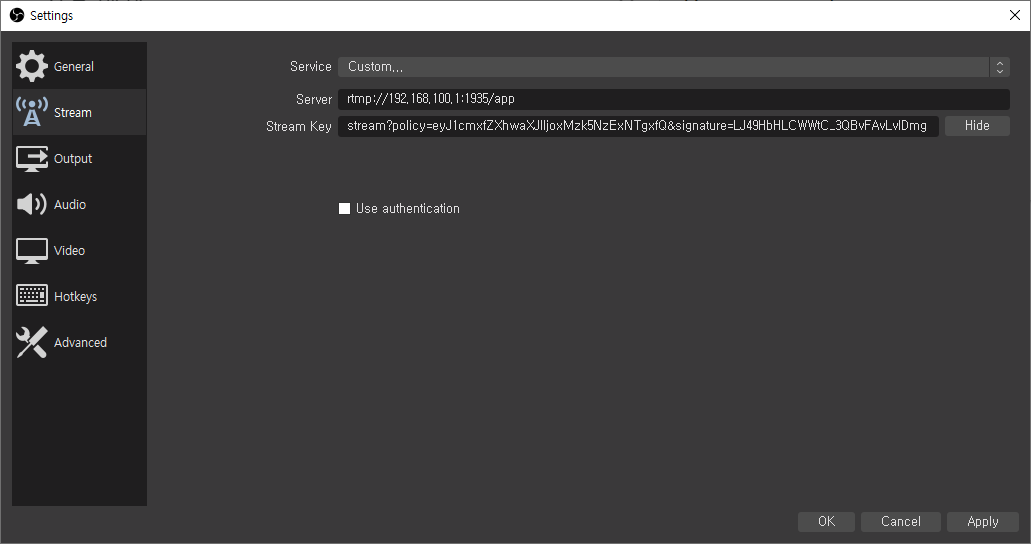

Separate the URL based on "app" as shown in the example below and enter all the parts under the stream in the Stream Key.
scheme://domain.com:port/app/stream?policy=<>&signature=<><String> IPv4 CIDR
Allowed IP Address Range
Check the IP address of the client connected to the server
real_ip (Optional)
<String> IPv4 CIDR
Allowed IP Address Range
Check the IP address of the client forwarded by the proxy server
The IP of the client that actually connected
srt://1.2.3.4:9998?streamid=default%2Fapp%2Fstream%3Fpolicy%3D__POLICY__%26signature%3D__SIGNATURE__.url_expire
(Required)
<Number> Milliseconds since unix epoch
The time the URL expires Reject on request after the expiration
url_activate
(Optional)
<Number> Milliseconds since unix epoch
The time the URL activates Reject on request before activation
stream_expire
(Optional)
<Number> Milliseconds since unix epoch
The time the Stream expires Transmission and playback stop when the time expires
PolicyQueryKeyName
The query string key name in the URL pointing to the policy value.
SignatureQueryKeyName
The query string key name in the URL pointing to the signature value.
SecretKey
The secret key used when encoding with HMAC-SHA1.
Enables
List of providers and publishers to enable SignedPolicy. Currently, SignedPolicy supports rtmp among providers, and among publishers, WebRTC, LLHLS, Thumbnail are supported.
allow_ip
(Optional)
{
"url_activate":1399711581,
"url_expire":1399721581,
"stream_expire":1399821581,
"allow_ip":"192.168.100.5/32",
"real_ip":"111.111.111.111/32"
}Base64URL.Encode(
HMAC.Encrypt(
SHA1,
secret_key,
"scheme://domain.com:port/app/stream[/file]?policy='encoded policy'>"
)
)$ ./simple_signed_policy_url_generator.sh ome_is_the_best \
srt://default/app/stream signature policy 600
[URL] srt://default/app/stream?policy=__POLICY__&signature=__SIGNATURE__
[Percent encoded URL] srt%3A//default/app/stream%3Fpolicy%3D__POLICY__%26signature%3D__SIGNATURE__<VirtualHost>
<SignedPolicy>
<PolicyQueryKeyName>policy</PolicyQueryKeyName>
<SignatureQueryKeyName>signature</SignatureQueryKeyName>
<SecretKey>aKq#1kj</SecretKey>
<Enables>
<Providers>rtmp</Providers>
<Publishers>webrtc,llhls,thumbnail</Publishers>
</Enables>
</SignedPolicy>
</VirtualHost>/misc/signed_policy_url_generator.sh./signed_policy_generator.sh [HMAC_KEY] [BASE_URL] [SIGNATURE_QUERY_KEY_NAME] [POLICY_QUERY_KEY_NAME] [POLICY]{"url_expire":1399721581}eyJ1cmxfZXhwaXJlIjoxMzk5NzIxNTgxfQws://192.168.0.100:3333/app/stream?policy=eyJ1cmxfZXhwaXJlIjoxMzk5NzIxNTgxfQws://192.168.0.100:3333/app/stream?policy=eyJ1cmxfZXhwaXJlIjoxMzk5NzIxNTgxfQdvVdBpoxAeCPl94Kt5RoiqLI0YEws://192.168.0.100/app/stream?policy=eyJ1cmxfZXhwaXJlIjoxMzk5NzIxNTgxfQ&signature=dvVdBpoxAeCPl94Kt5RoiqLI0YE
