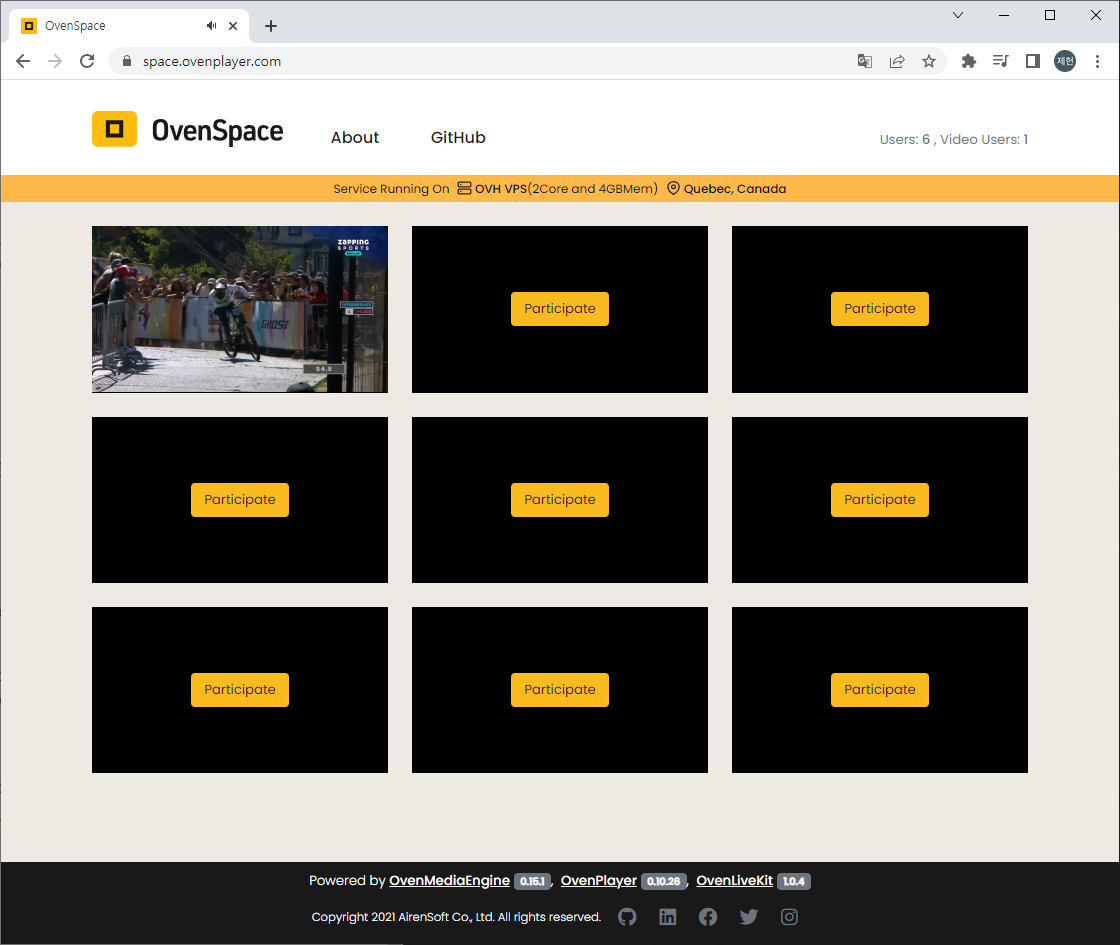

OvenSpace offers a fast and easy way to experience the powerful tools of OvenMediaEngine, OvenPlayer, and OvenLiveKit in action.

With OvenSpace, you can quickly and easily stream content with sub-second latency using WebRTC technology, or take advantage of Apple's LLHLS specification to deliver low-latency live streaming. The platform allows you to stream from various sources, including your webcam, microphone, screen, or an external live encoder that supports RTMP and SRT.

OvenSpace is available online, so you can try it out for yourself at https://space.ovenplayer.com/. You'll get a hands-on experience of how OvenMediaEngine, OvenPlayer, and OvenLiveKit work together seamlessly to deliver top-quality streaming, whether you're a developer looking to build a media service or someone who wants to experience sub-second or low-latency streaming firsthand.

OvenSpace is also available on Github as open source. It will be a good reference when developing media services using OvenMediaEngine, OvenPlayer and OvenLiveKit.

What is OvenMediaEngine?

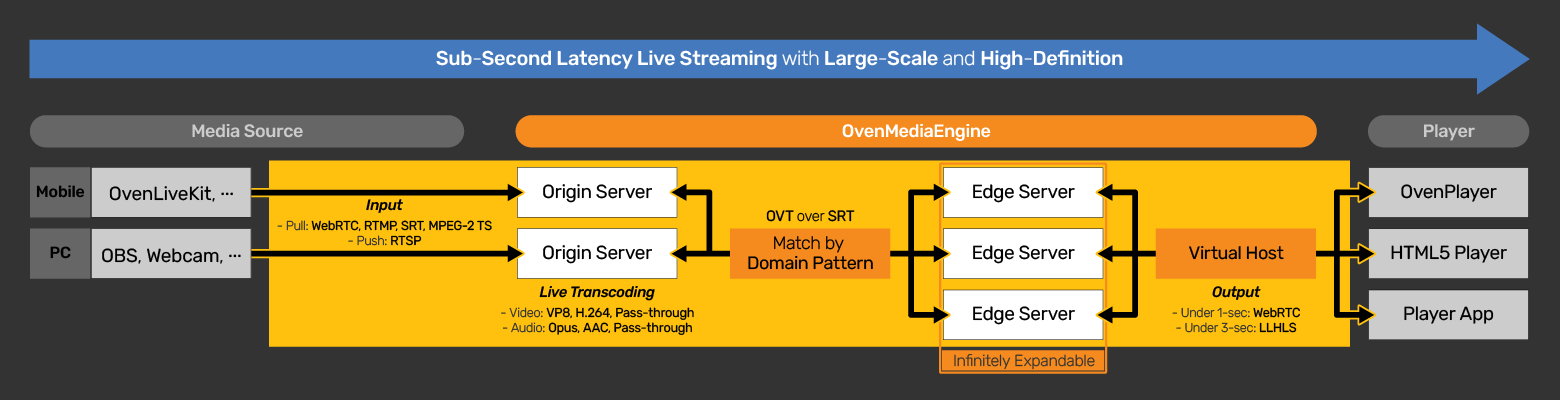

OvenMediaEngine (OME) is a Sub-Second Latency Live Streaming Server with Large-Scale and High-Definition. With OME, you can create platforms/services/systems that transmit high-definition video to hundreds-thousand viewers with sub-second latency and be scalable, depending on the number of concurrent viewers.

OvenMediaEngine can receive a video/audio, video, or audio source from encoders and cameras such as OvenLiveKit, OBS, XSplit, and more, to WebRTC, SRT, RTMP, MPEG-2 TS, and RTSP as Input. Then, OME transmits this source using LLHLS (Low Latency HLS) and WebRTC as output. Also, we provide OvenPlayer, an Open-Source and JavaScript-based WebRTC/LLHLS Player for OvenMediaEngine.

Our goal is to make it easier for you to build a stable broadcasting/streaming service with sub-second latency.

Features

• Ingest

  • Push: WebRTC, WHIP, SRT, RTMP, MPEG-2 TS

  • Pull: RTSP

  • Scheduled Channel (Pre-recorded Live)

  • Multiplex Channel (Duplicate stream / Mux tracks)

• Adaptive Bitrate Streaming (ABR) for HLS, LLHLS and WebRTC

• Low-Latency Streaming using LLHLS

  • DVR (Live Rewind)

  • Dump for VoD

  • ID3v2 timed metadata

  • DRM (Widevine, Fairplay)

• Sub-Second Latency Streaming using WebRTC

  • WebRTC over TCP (with embedded TURN server)

  • Embedded WebRTC Signaling Server (WebSocket based)

  • Retransmission with NACK

  • ULPFEC (Uneven Level Protection Forward Error Correction)

    • VP8, H.264

  • In-band FEC (Forward Error Correction)

    • Opus

• HLS (version 3) Streaming support for legacy devices

  • MPEG-2 TS Container

  • Audio/Video Muxed

  • DVR (Live Rewind)

• Embedded Live Transcoder

  • Video: VP8, H.264, H.265(Hardware encoder only), Pass-through

  • Audio: Opus, AAC, Pass-through

• Clustering (Origin-Edge Structure)

• Monitoring

• Access Control

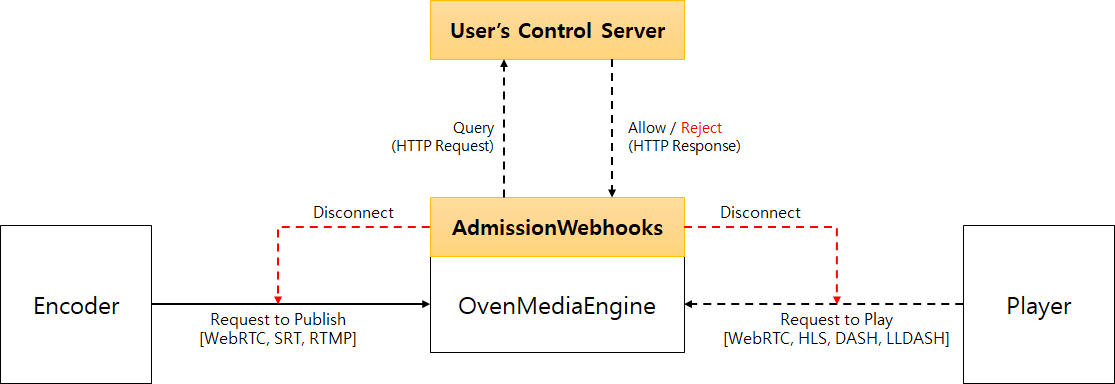

  • AdmissionWebhooks

  • SignedPolicy

• File Recording

• Push Publishing using SRT, RTMP and MPEG2-TS (Re-streaming)

• Thumbnail

• REST API

Supported Platforms

We have tested OvenMediaEngine on platforms, listed below. However, we think it can work with other Linux packages as well:

• Docker (https://hub.docker.com/r/airensoft/ovenmediaengine)

• Ubuntu 18+

• CentOS 7+ (Rocky 9+ will be supported)

• Fedora 28+

Getting Started

Please read Getting Started chapter in the tutorials.

How to Contribute

Thank you so much for being so interested in OvenMediaEngine.

We need your help to keep and develop our open-source project, and we want to tell you that you can contribute in many ways. Please see our Guidelines, Rules, and Contribute.

• Finding Bugs

• Reviewing Code

• Sharing Ideas

• Testing

• Improving Documentation

• Spreading & Use Cases

• Recurring Donations

We always hope that OvenMediaEngine will give you good inspiration.

For more information

• OvenMediaEngine GitHub

• OvenMediaEngine Website

• OvenMediaEngine Tutorial Source

• Test Player

  • Without TLS: http://demo.ovenplayer.com

  • With TLS: https://demo.ovenplayer.com

• OvenPlayer Github

• AirenSoft Website

License

OvenMediaEngine is licensed under the AGPL-3.0-only. However, if you need another license, please feel free to email us at contact@airensoft.com.

Most browsers can't load resources via HTTP and WS (WebSocket) from HTTPS web pages secured with TLS. Therefore, if the player is on an HTTPS page, the player must request streaming through "https" and "wss" URLs secured with TLS. In this case, you must apply the TLS certificate to the OvenMediaEngine.

You can set the port for TLS in TLSPort. Currently, LLHLS and WebRTC Signaling support TLS.

<Bind>
    <!-- For API Server -->
    <Managers>
	    <API>
	    <Port>8081</Port>
	    <TLSPort>8082</TLSPort>
            <WorkerCount>1</WorkerCount>
	</API>
    </Managers>
    <!-- For Providers -->
    <Providers>
        <WebRTC>
	    <Signalling>
		<Port>3333</Port>
		<TLSPort>3334</TLSPort>
		<WorkerCount>1</WorkerCount>
	    </Signalling>
            ...
        </WebRTC>
    </Providers>
    <!- For Publishers -->
    <Publishers>
        <LLHLS>
            <Port>80</Port>
            <TLSPort>443</TLSPort>
        </LLHLS>
        <WebRTC>
            <Signalling>
                <Port>3333</Port>
                <TLSPort>3334</TLSPort>
            </Signalling>
            ...
        </WebRTC>
    </Publishers>
</Bind>

Add your certificate files to as follows:

<!-- For API Server -->
<Managers>
  <Host>
    <Names>
      <Name>*</Name>
    </Names>
    <TLS>
      <CertPath>path/to/file.crt</CertPath>
      <KeyPath>path/to/file.key</KeyPath>
      <ChainCertPath>path/to/file.crt</ChainCertPath>
    </TLS>
  </Host>
  ...
</Managers>

<VirtualHosts>
  <VirtualHost>
    <!-- For Vitual Host -->
    <Host>
        <Names>
            <Name>*</Name>
        </Names>
        <TLS>
          <CertPath>/etc/pki/airensoft.com/_airensoft_com.crt</CertPath>
          <KeyPath>/etc/pki/airensoft.com/_airensoft_com.key</KeyPath>
          <ChainCertPath>/etc/pki/airensoft.com/_airensoft_com.ca-bundle</ChainCertPath>
        </TLS>
    </Host>

To enable HTTP for HLS and WebRTC signaling servers, you must enable the TLS element and install the certificate file in PEM format. This involves indicating a server certificate through the CertPath, as well as a private key file through the KeyPath. These paths can be specified as either absolute or relative paths from the executable. However, if the server certificate was issued using an intermediate certificate, some browsers may raise concerns about the certificate's authenticity. To address this, a bundle of chained certificates provided by a Certificate Authority can be set in the ChainCertPath.

Assuming the certificate settings are correctly configured, WebRTC streaming can then be played via the wss://url protocol, while LLHLS streaming can be accessed via https://url.

Starting from version OME v0.15.1, IPv6 is supported.

To use IPv6, you need to change the settings of the Server.xml file as follows:

1. Configuration for listening

You can use /Server/IP to support IPv6. In versions prior to v0.15.0, only one /Server/IP setting could be specified, but in versions after v0.15.1, multiple settings can be specified. That is, if you add an /Server/IP element for IPv6 to the existing configuration as follows, you can accept IPv6 requests from clients:

<Server>
...
	<IP>*</IP>
	<!-- Listening the bind ports on IPv6 interfaces -->
	<IP>::</IP>
...

Example 1) IPv4 Only

<Server version="8">
    <Name>OvenMediaEngine</Name>
    <Type>origin</Type>
    <IP>*</IP>

    <Bind>
        <Providers>
            <RTMP>
                <Port>1935</Port>
            </RTMP>
        </Providers>
    </Bind>
</Server>

OME listens to the 1935 port for RTMP as follows:

$ sudo netstat -tulnp | grep "$(pgrep OvenMediaEngine)"
tcp        0      0 0.0.0.0:1935            0.0.0.0:*               LISTEN      xxx/OvenMediaEn

Example 2) IPv6 Only

<Server version="8">
    <Name>OvenMediaEngine</Name>
    <Type>origin</Type>
    <IP>::</IP>

    <Bind>
        <Providers>
            <RTMP>
                <Port>1935</Port>
            </RTMP>
        </Providers>
    </Bind>
</Server>

OME listens to the 1935 port for RTMP as follows:

$ sudo netstat -tulnp | grep "$(pgrep OvenMediaEngine)"
tcp6       0      0 :::1935                 :::*                    LISTEN      xxx/OvenMediaEn

Example 3) IPv4 + IPv6

<?xml version="1.0" encoding="UTF-8"?>
<Server version="8">
    <Name>OvenMediaEngine</Name>
    <Type>origin</Type>
    <IP>*</IP>
    <IP>::</IP>

    <Bind>
        <Providers>
            <RTMP>
                <Port>1935</Port>
            </RTMP>
        </Providers>
    </Bind>
</Server>

OME listens to the 1935 port for RTMP as follows:

$ sudo netstat -tulnp | grep "$(pgrep OvenMediaEngine)"
tcp        0      0 0.0.0.0:1935            0.0.0.0:*               LISTEN      xxx/OvenMediaEn
tcp6       0      0 :::1935                 :::*                    LISTEN      xxx/OvenMediaEn

2. Configuration for IceCandidates (for WebRTC)

When you specify IPv6 interface /Server/IP, most Providers/Publishers will work with IPv6, but WebRTC will not. While the WebSocket server used as the WebRTC Signalling server works well with the above setting, but more setting is required for ICE Candidates that actually transmit/receive data.

To use IPv6 ICE Candidate, you need to add an IPv6 IceCandidate to /Server/Bind/(Providers|Publishers)/WebRTC/IceCandidates.

<Server version="8">
    ...
    <Bind>
        <Providers>
            <WebRTC>
                ...
                <IceCandidates>
                    <IceCandidate>*:10000/udp</IceCandidate>
                    <IceCandidate>[::]:10000/udp</IceCandidate>
                </IceCandidates>
...

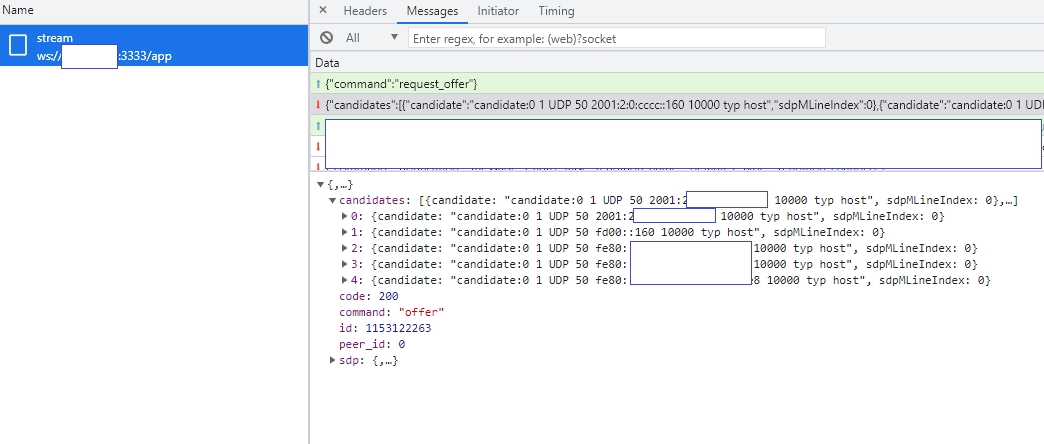

By setting up as above, OME is ready to use ICE Candidates for IPv6 as well as IPv4. The ICE Candidate generated here can be viewed in the signaling step of the web browser.

3. Configuration for <Origin>

Now you can set up the OME edge to look at an origin with an IPv6 IP address. To do this, you can set /Server/VirtualHosts/VirtualHost/Origins/Origin/Pass/Urls/Url as follows:

<Server version="8">
    ...
    <VirtualHosts>
        <VirtualHost>
            <Origins>
                <Origin>
                    <Location>/rtsp/stream</Location>
                    <Pass>
                        <Scheme>rtsp</Scheme>
                        <Urls>
                            <Url>airen:airen@[1:2:3:4:5:6:7:8]:1234/app/stream</Url>
                        </Urls>
                    </Pass>
                </Origin>
            </Origins>
  ...

This configuration creates a stream that refers an RTSP source provided on port 1234 of an origin which has an IPv6 address of 1:2:3:4:5:6:7:8.

4. Configuration for <AdmissionWebhooks>

You can also specify an IPv6 address for the server that AdmissionWebhooks is using. To do this, set the value of /Server/VirtualHosts/VirtualHost/AdmissionWebhooks/ControlServerUrl as follows:

<Server version="8">
    ...
    <VirtualHosts>
        <VirtualHost>
            <AdmissionWebhooks>
                <ControlServerUrl>http://[1:2:3:4:5:6:7:8]:7000/a/b/c</ControlServerUrl>

The above configuration asks whether the client has the permission to publish or playback using http://[1:2:3:4:5:6:7:8]:7000/a/b/c.

This page provides the fastest way to check playback of WebRTC and LLHLS using OvenMediaEngine. For installation and detailed settings, please refer to other pages.

Run OvenMediaEngine

Run docker with the command below. OME_HOST_IP must be an IP address accessible by the player.

$ docker run --name ome -d -e OME_HOST_IP=Your.HOST.IP.Address \
-p 1935:1935 -p 9999:9999/udp -p 9000:9000 -p 3333:3333 -p 3478:3478 -p 10000-10009:10000-10009/udp \
airensoft/ovenmediaengine:latest

$ docker ps -f name=ome
CONTAINER ID   IMAGE                              COMMAND                  CREATED              STATUS              PORTS                                                                                                                                                                                                                                                                                                           NAMES
c9dd9e56d7a0   airensoft/ovenmediaengine:latest   "/opt/ovenmediaengin…"   About a minute ago   Up About a minute   0.0.0.0:1935->1935/tcp, :::1935->1935/tcp, 80/tcp, 0.0.0.0:3333->3333/tcp, :::3333->3333/tcp, 3334/tcp, 8080/tcp, 0.0.0.0:3478->3478/tcp, :::3478->3478/tcp, 4000-4005/udp, 8090/tcp, 0.0.0.0:9000->9000/tcp, :::9000->9000/tcp, 10010/udp, 0.0.0.0:9999-10009->9999-10009/udp, :::9999-10009->9999-10009/udp   ome

$ docker logs ome -f
[2023-03-06 08:01:24.810] I [OvenMediaEngine:1] Config | config_manager.cpp:239  | Trying to set logfile in directory... (/var/log/ovenmediaengine)
[2023-03-06 08:01:24.810] I [OvenMediaEngine:1] Config | config_manager.cpp:261  | Trying to load configurations... (origin_conf/Server.xml)
[2023-03-06 08:01:24.816] I [OvenMediaEngine:1] OvenMediaEngine | banner.cpp:23   | OvenMediaEngine v0.16.6 () is started on [ab3995acafd4] (Linux x86_64 - 5.13.0-44-generic, #49~20.04.1-Ubuntu SMP Wed May 18 18:44:28 UTC 2022)
...

Run OvenPlayer Demo

$ docker run -d -p 8090:80 airensoft/ovenplayerdemo:latest

Publishing

Publish your live stream to OvenMediaEngine using a live encoder like OBS.

The RTMP publishing address is :

Server rtmp://Your.Docker.Host.IP:1935/app

Stream Key stream

The settings below are recommended for ultra-low latency.

Playback

Open the installed OvenPlayer Demo page in your browser.

http://Your.Docker.Host.IP:8090/

WebRTC Playback

Add ws://Your.Docker.Host.IP:3333/app/stream to the Playback URL and click the ADD SOURCE and LOAD PLAYER button to play the live stream with WebRTC.

LLHLS Playback

Add http://Your.Docker.Host.IP:3333/app/stream/llhls.m3u8 to the Playback URL and click the ADD SOURCE and LOAD PLAYER button to play the live stream with LLHLS.

User can send video/audio from web browser to OvenMediaEngine via WebRTC without plug-in. Of course, you can use any encoder that supports WebRTC transmission as well as a browser.

Configuration

Bind

OvenMediaEngine supports self-defined signaling protocol and WHIP for WebRTC ingest.

<Bind>
    <Providers>
        ...
        <WebRTC>
            <Signalling>
                <Port>3333</Port>
                <TLSPort>3334</TLSPort>
            </Signalling>
            <IceCandidates>
                <TcpRelay>*:3478</TcpRelay>
                <TcpForce>false</TcpForce>
                <IceCandidate>*:10000-10005/udp</IceCandidate>
            </IceCandidates>
        </WebRTC>
    </Providers>

You can set the port to use for signaling in <Bind><Provider><WebRTC><Signaling>. <Port> is for setting an unsecured HTTP port, and <TLSPort> is for setting a secured HTTP port that is encrypted with TLS.

For WebRTC ingest, you must set the ICE candidates of the OvenMediaEnigne server to <IceCandidates>. The candidates set in <IceCandate> are delivered to the WebRTC peer, and the peer requests communication with this candidate. Therefore, you must set the IP that the peer can access. If the IP is specified as *, OvenMediaEngine gathers all IPs of the server and delivers them to the peer.

<TcpRelay> means OvenMediaEngine's built-in TURN Server. When this is enabled, the address of this turn server is passed to the peer via self-defined signaling protocol or WHIP, and the peer communicates with this turn server over TCP. This allows OvenMediaEngine to support WebRTC/TCP itself. For more information on URL settings, check out WebRTC over TCP.

Application

WebRTC input can be turned on/off for each application. As follows Setting enables the WebRTC input function of the application. The <CrossDomains> setting is used in WebRTC signaling.

<Applications>
    <Application>
        <Name>app</Name>
        <Providers>
            <WebRTC>
                <Timeout>30000</Timeout>
                <CrossDomains>
                    <Url>*</Url>
                </CrossDomains>
            </WebRTC>

URL Pattern

OvenMediaEnigne supports self-defined signaling protocol and WHIP for WebRTC ingest.

Self-defined Signaling URL

The signaling URL for WebRTC ingest uses the query string ?direction=send as follows to distinguish it from the url for WebRTC playback. Since the self-defined WebRTC signaling protocol is based on WebSocket, you must specify ws[s] as the scheme.

ws[s]://<host>[:signaling port]/<app name>/<stream name>?direction=send

WHIP URL

For ingest from the WHIP client, put ?direction=whip in the query string in the signaling URL as in the example below. Since WHIP is based on HTTP, you must specify http[s] as the scheme.

http[s]://<host>[:signaling port]/<app name>/<stream name>?direction=whip

WebRTC over TCP

WebRTC transmission is sensitive to packet loss because it affects all players who access the stream. Therefore, it is recommended to provide WebRTC transmission over TCP. OvenMediaEngine has a built-in TURN server for WebRTC/TCP, and receives or transmits streams using the TCP session that the player's TURN client connects to the TURN server as it is. To use WebRTC/TCP, use transport=tcp query string as in WebRTC playback. See WebRTC/tcp playback for more information.

ws[s]://<host>[:port]/<app name>/<stream name>?direction=send&transport=tcp

http[s]://<host>[:port]/<app name>/<stream name>?direction=whip&transport=tcp

WebRTC Producer

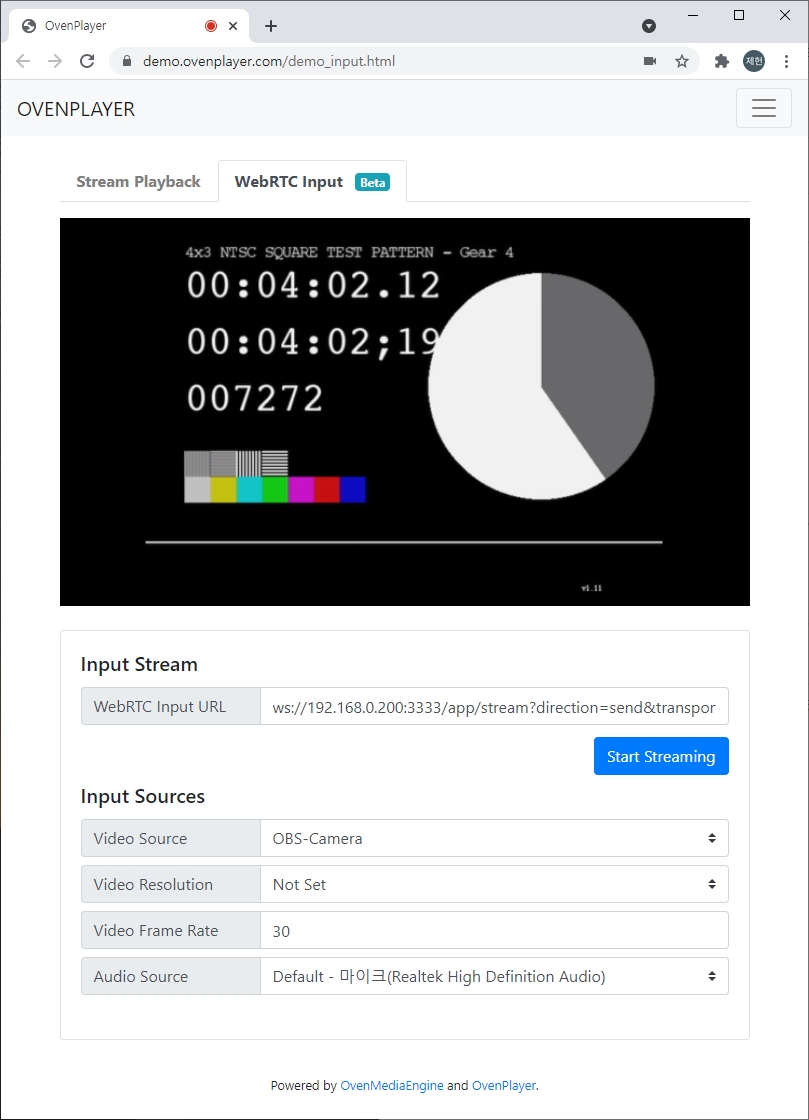

We provide a demo page so you can easily test your WebRTC input. You can access the demo page at the URL below.

Self-defined WebRTC Ingest Signaling Protocol

To create a custom WebRTC Producer, you need to implement OvenMediaEngine's Self-defined Signaling Protocol or WHIP. Self-defined protocol is structured in a simple format and uses the same method as WebRTC Streaming.

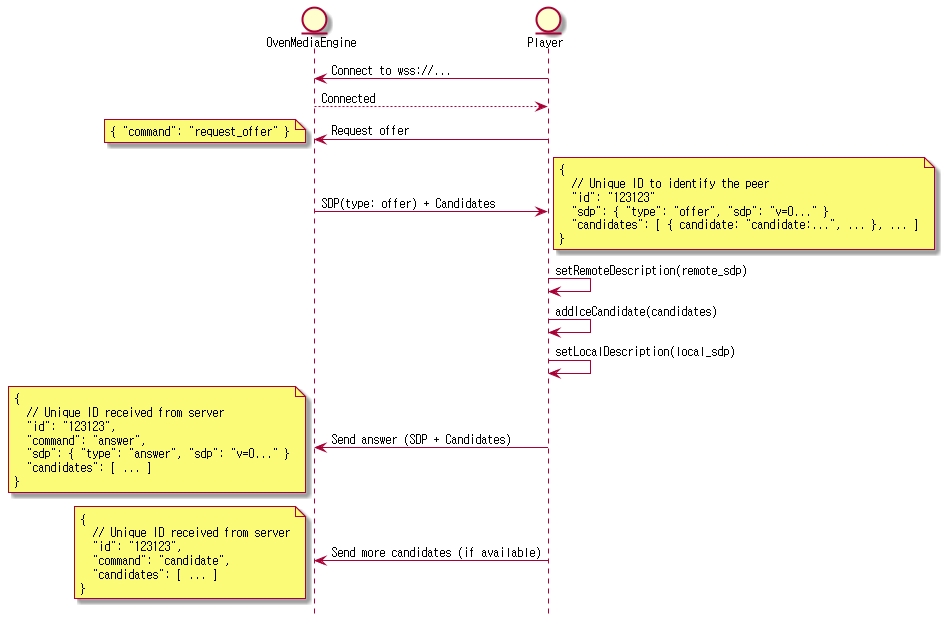

When the player connects to ws[s]://host:port/app/stream?direction=send through a web socket and sends a request offer command, the server responds to the offer sdp. If transport=tcp exists in the query string of the URL, iceServers information is included in offer sdp, which contains the information of OvenMediaEngine's built-in TURN server, so you need to set this in RTCPeerConnection to use WebRTC/TCP. The player then setsRemoteDescription and addIceCandidate offer sdp, generates an answer sdp, and responds to the server.

OvenMediaEngine has an XML configuration file. If you start OvenMediaEngine with systemctl start ovenmediaengine, the config file is loaded from the following path.

/usr/share/ovenmediaengine/conf/Server.xml

If you run it directly from the command line, it loads the configuration file from:

/<OvenMediaEngine Binary Path>/conf/Server.xml

If you run it in Docker container, the path to the configuration file is:

# For Origin mode
/opt/ovenmediaengine/bin/origin_conf/Server.xml
# For Edge mode
/opt/ovenmediaengine/bin/edge_conf/Server.xml

Server

The Server is the root element of the configuration file. The versionattribute indicates the version of the configuration file. OvenMediaEngine uses this version information to check if the config file is a compatible version.

<?xml version="1.0" encoding="UTF-8"?>
<Server version="8">
    <Name>OvenMediaEngine</Name>
    <IP>*</IP>
    <PrivacyProtection>false</PrivacyProtection>
    <StunServer>stun.l.google.com:19302</StunServer>
    <Bind>...</Bind>
    <VirtualHosts>...</VirtualHosts>
</Server>

IP

    <IP>*</IP>

The IP address is OvenMediaEngine will bind to. If you set *, all IP addresses of the system are used. If you enter a specific IP, the Host uses that IP only.

PrivacyProtection

PrivacyProtection is an option to comply with GDPR, PIPEDA, CCPA, LGPD, etc. by deleting the client's personal information (IP, Port) from all records. When this option is turned on, the client's IP and Port are converted to xxx.xxx.xxx.xxx:xxx in all logs and REST APIs.

StunServer

OvenMediaEngine needs to know its public IP in order to connect to the player through WebRTC. The server must inform the player of the IceCandidates and TURN server addresses when signaling, and this information must be the IP the player can connect to. However, in environments such as Docker or AWS, public IP cannot be obtained through a local interface, so a method of obtaining public IP using stun server is provided (available from version 0.11.1).

If OvenMediaEngine obtains the public IP through communication with the set stun server, you can set the public IP by using * or ${PublicIP} in IceCandidate and TcpRelay.

<StunServer>stun.l.google.com:19302</StunServer>

Bind

The Bind is the configuration for the server port that will be used. Bind consists of Providers and Publishers. The Providers are the server for stream input, and the Publishers are the server for streaming.

<!-- Settings for the ports to bind -->
<Bind>
    <!-- Enable this configuration if you want to use API Server -->
    <!--
    <Managers>
        <API>
            <Port>8081</Port>
            <WorkerCount>1</WorkerCount>
        </API>
    </Managers>
    -->

    <Providers>
        <!-- Pull providers -->
        <RTSPC>
            <WorkerCount>1</WorkerCount>
        </RTSPC>
        <OVT>
            <WorkerCount>1</WorkerCount>
        </OVT>
        <!-- Push providers -->
        <RTMP>
            <Port>1935</Port>
            <WorkerCount>1</WorkerCount>
        </RTMP>
        <SRT>
            <Port>9999</Port>
            <WorkerCount>1</WorkerCount>
        </SRT>
        <MPEGTS>
            <!--
                Listen on port 4000~4005 (<Port>4000-4004,4005/udp</Port>)
                This is just a demonstration to show that you can configure the port in several ways
            -->
            <Port>4000/udp</Port>
        </MPEGTS>
        <WebRTC>
            <Signalling>
                <Port>3333</Port>
                <TLSPort>3334</TLSPort>
                <WorkerCount>1</WorkerCount>
            </Signalling>

            <IceCandidates>
                <IceCandidate>*:10000/udp</IceCandidate>
                <!--
                    If you want to stream WebRTC over TCP, specify IP:Port for TURN server.
                    This uses the TURN protocol, which delivers the stream from the built-in TURN server to the player's TURN client over TCP.
                    For detailed information, refer https://airensoft.gitbook.io/ovenmediaengine/streaming/webrtc-publishing#webrtc-over-tcp
                -->
                <TcpRelay>*:3478</TcpRelay>
                <!-- TcpForce is an option to force the use of TCP rather than UDP in WebRTC streaming. (You can omit ?transport=tcp accordingly.) If <TcpRelay> is not set, playback may fail. -->
                <TcpForce>true</TcpForce>
                <TcpRelayWorkerCount>1</TcpRelayWorkerCount>
            </IceCandidates>
        </WebRTC>
    </Providers>

    <Publishers>
        <OVT>
            <Port>9000</Port>
            <WorkerCount>1</WorkerCount>
        </OVT>
        <LLHLS>
            <!--
            OME only supports h2, so LLHLS works over HTTP/1.1 on non-TLS ports.
            LLHLS works with higher performance over HTTP/2,
            so it is recommended to use a TLS port.
            -->
            <Port>3333</Port>
            <!-- If you want to use TLS, specify the TLS port -->
            <TLSPort>3334</TLSPort>
            <WorkerCount>1</WorkerCount>
        </LLHLS>
        <WebRTC>
            <Signalling>
                <Port>3333</Port>
                <TLSPort>3334</TLSPort>
                <WorkerCount>1</WorkerCount>
            </Signalling>
            <IceCandidates>
                <IceCandidate>*:10000-10005/udp</IceCandidate>
                <!--
                    If you want to stream WebRTC over TCP, specify IP:Port for TURN server.
                    This uses the TURN protocol, which delivers the stream from the built-in TURN server to the player's TURN client over TCP.
                    For detailed information, refer https://airensoft.gitbook.io/ovenmediaengine/streaming/webrtc-publishing#webrtc-over-tcp
                -->
                <TcpRelay>*:3478</TcpRelay>
                <!-- TcpForce is an option to force the use of TCP rather than UDP in WebRTC streaming. (You can omit ?transport=tcp accordingly.) If <TcpRelay> is not set, playback may fail. -->
                <TcpForce>true</TcpForce>
                <TcpRelayWorkerCount>1</TcpRelayWorkerCount>
            </IceCandidates>
        </WebRTC>
    </Publishers>
</Bind>

The meaning of each element is shown in the following table:

Virtual Host

VirtualHosts are a way to run more than one streaming server on a single machine. OvenMediaEngine supports IP-based virtual host and Domain-based virtual host. "IP-based" means that you can separate streaming servers into multiples by setting different IP addresses, and "Domain-based" means that even if the streaming servers use the same IP address, you can split the streaming servers into multiples by setting different domain names.

VirtualHostsconsist of Name, Host, Origins, SignedPolicy, and Applications.

<?xml version="1.0" encoding="UTF-8"?>
<Server version="8">
    <Name>OvenMediaEngine</Name>
    <VirtualHosts>
        <VirtualHost>
            <Name>default</Name>
            <Host>
            ...
            </Host>

            <Origins>
            ...
            </Origins>

            <SignedPolicy>
            ...
            </SignedPolicy>

            <Applications>
            ...
            </Applications>
        </Host>
    </Hosts>
</Server>

Host

The Domain has Names and TLS. Names can be either a domain address or an IP address. Setting * means it allows all domains and IP addresses.

<Host>
        <Names>
            <!-- Domain names
            <Name>stream1.airensoft.com</Name>
            <Name>stream2.airensoft.com</Name>
            <Name>*.sub.airensoft.com</Name>
            -->
            <Name>*</Name>
        </Names>
	<TLS>
	    <CertPath>path/to/file.crt</CertPath>
	    <KeyPath>path/to/file.key</KeyPath>
	    <ChainCertPath>path/to/file.crt</ChainCertPath>
	</TLS>
</Host>

SignedPolicy

SignedPolicy is a module that limits the user's privileges and time. For example, operators can distribute RTMP URLs that can be accessed for 60 seconds to authorized users, and limit RTMP transmission to 1 hour. The provided URL will be destroyed after 60 seconds, and transmission will automatically stop after 1 hour. Users who are provided with a SingedPolicy URL cannot access resources other than the provided URL. This is because the SignedPolicy URL is authenticated. See the SignedPolicy chapter for more information.

Origins

Origins (also we called OriginMap) are a feature to pull streams from external servers. It now supports OVT and RTSP for the pulling protocols. OVT is a protocol defined by OvenMediaEngine for Origin-Edge communication. It allows OvenMediaEngine to relay a stream from other OvenMediaEngines that have OVP Publisher turned on. Using RTSP, OvenMediaEngine pulls a stream from an RTSP server and creates a stream. RTSP stream from external servers can stream by WebRTC, HLS, and MPEG-DASH.

The Origin has Location and Pass elements. Location is a URI pattern for incoming requests. If the incoming URL request matches Location, OvenMediaEngine pulls the stream according to a Pass element. In the Pass element, you can set the origin stream's protocol and URLs.

To run the Edge server, Origin creates application and stream if there isn't those when user request. For more learn about Origin-Edge, see the Live Source chapter.

<Origins>
    <Origin>
        <Location>/app/stream</Location>
        <Pass>
            <Scheme>ovt</Scheme>
            <Urls><Url>origin.com:9000/app/stream_720p</Url></Urls>
        </Pass>
    </Origin>
    <Origin>
        <Location>/app/</Location>
        <Pass>
            <Scheme>ovt</Scheme>
            <Urls><Url>origin.com:9000/app/</Url></Urls>
        </Pass>
    </Origin>
    <Origin>
        <Location>/rtsp/stream</Location>
        <Pass>
            <Scheme>rtsp</Scheme>
            <Urls><Url>rtsp-server.com:554/</Url></Urls>
        </Pass>
    </Origin>
    <Origin>
        <Location>/</Location>
        <Pass>
            <Scheme>ovt</Scheme>
            <Urls><Url>origin2.com:9000/</Url></Urls>
        </Pass>
    </Origin>
</Origins>

Application

<Application> consists of various elements that can define the operation of the stream, including Stream input, Encoding, and Stream output. In other words, you can create as many <Application> as you like and build various streaming environments.

<VirtualHost>
    ...
    <Applications>
        <Application>
            ...
        </Application>
        <Application>
            ...
        </Application>
    </Applications>
</VirtualHost>

<Application> needs to set <Name> and <Type> as follows:

<Application>
    <Name>app</Name>
    <Type>live</Type>
    <OutputProfiles> ... </OutputProfiles>
    <Providers> ... </Providers>
    <Publishers> ... </Publishers>
</Application>

• <Name> is used to configure the Streaming URL.

• <Type> defines the operation of <Application>. Currently, there is only a live type.

OutputProfiles

<OutputProfile> is a configuration that creates an output stream. Output stream name can be set with <OutputStreamName>, and transcoding properties can be set through <Encodes>. If you want to stream one input to multiple output streams, you can set multiple <OutputProfile>.

<Application>
    <OutputProfiles>
            <OutputProfile>
                <Name>bypass_stream</Name>
                <OutputStreamName>${OriginStreamName}</OutputStreamName>
                <Encodes>
                    <Audio>
                        <Bypass>true</Bypass>
                    </Audio>
                    <Video>
                        <Bypass>true</Bypass>
                    </Video>
                    <Audio>
                        <Codec>opus</Codec>
                        <Bitrate>128000</Bitrate>
                        <Samplerate>48000</Samplerate>
                        <Channel>2</Channel>
                    </Audio>
                    <!--
                    <Video>
                        <Codec>vp8</Codec>
                        <Bitrate>1024000</Bitrate>
                        <Framerate>30</Framerate>
                        <Width>1280</Width>
                        <Height>720</Height>
                    </Video>
                    -->
                </Encodes>
            </OutputProfile>
        </OutputProfiles>
</Application>

For more information about the OutputProfiles, please see the Transcoding chapter.

Providers

Providers ingest streams that come from a media source.

<Application>
   <Providers>
      <RTMP/>
      <WebRTC/>
      <SRT/>
      <RTSPPull/>
      <OVT/>
      <MPEGTS>
         <StreamMap>
            ...
         </StreamMap>
      </MPEGTS>
   </Providers>
</Application>

If you want to get more information about the <Providers>, please refer to the Live Source chapter.

Publishers

You can configure the Output Stream operation in <Publishers>. <ThreadCount> is the number of threads used by each component responsible for the <Publishers> protocol.

<Application>
   <Publishers>
      <OVT />
	  <LLHLS />
      <WebRTC />
   </Publishers>
</Application>

​OvenMediaEngine currently supports WebRTC, Low-Latency DASH, MEPG-DASH, and HLS. If you don't want to use any protocol then you can delete that protocol setting, the component for that protocol isn't initialized. As a result, you can save system resources by deleting the settings of unused protocol components.

If you want to learn more about WebRTC, visit the WebRTC Streaming chapter. And if you want to get more information on Low-Latency DASH, MPEG-DASH, and HLS, refer to the chapter on HLS & MPEG-DASH Streaming.

Configuration Example

Finally, Server.xml is configured as follows:

<?xml version="1.0" encoding="UTF-8"?>

<Server version="8">
    <Name>OvenMediaEngine</Name>
    <!-- Host type (origin/edge) -->
    <Type>origin</Type>
    <!-- Specify IP address to bind (* means all IPs) -->
    <IP>*</IP>
    <PrivacyProtection>false</PrivacyProtection>

    <!--
    To get the public IP address(mapped address of stun) of the local server.
    This is useful when OME cannot obtain a public IP from an interface, such as AWS or docker environment.
    If this is successful, you can use ${PublicIP} in your settings.
    -->
    <StunServer>stun.l.google.com:19302</StunServer>

    <Modules>
        <!--
        Currently OME only supports h2 like all browsers do. Therefore, HTTP/2 only works on TLS ports.
        -->
        <HTTP2>
            <Enable>true</Enable>
        </HTTP2>

        <LLHLS>
            <Enable>true</Enable>
        </LLHLS>

        <!-- P2P works only in WebRTC and is experiment feature -->
        <P2P>
            <!-- disabled by default -->
            <Enable>false</Enable>
            <MaxClientPeersPerHostPeer>2</MaxClientPeersPerHostPeer>
        </P2P>
    </Modules>

<!-- Settings for the ports to bind -->
<Bind>
    <!-- Enable this configuration if you want to use API Server -->
    <!--
    <Managers>
        <API>
            <Port>8081</Port>
            <TLSPort>8082</TLSPort>
            <WorkerCount>1</WorkerCount>
        </API>
    </Managers>
    -->

    <Providers>
        <!-- Pull providers -->
        <RTSPC>
            <WorkerCount>1</WorkerCount>
        </RTSPC>
        <OVT>
            <WorkerCount>1</WorkerCount>
        </OVT>
        <!-- Push providers -->
        <RTMP>
            <Port>1935</Port>
            <WorkerCount>1</WorkerCount>
        </RTMP>
        <SRT>
            <Port>9999</Port>
            <WorkerCount>1</WorkerCount>
        </SRT>
        <MPEGTS>
            <!--
                Listen on port 4000~4005 (<Port>4000-4004,4005/udp</Port>)
                This is just a demonstration to show that you can configure the port in several ways
            -->
            <Port>4000/udp</Port>
        </MPEGTS>
        <WebRTC>
            <Signalling>
                <Port>3333</Port>
                <TLSPort>3334</TLSPort>
                <WorkerCount>1</WorkerCount>
            </Signalling>

            <IceCandidates>
                <IceCandidate>*:10000/udp</IceCandidate>
                <!--
                    If you want to stream WebRTC over TCP, specify IP:Port for TURN server.
                    This uses the TURN protocol, which delivers the stream from the built-in TURN server to the player's TURN client over TCP.
                    For detailed information, refer https://airensoft.gitbook.io/ovenmediaengine/streaming/webrtc-publishing#webrtc-over-tcp
                -->
                <TcpRelay>*:3478</TcpRelay>
                <!-- TcpForce is an option to force the use of TCP rather than UDP in WebRTC streaming. (You can omit ?transport=tcp accordingly.) If <TcpRelay> is not set, playback may fail. -->
                <TcpForce>true</TcpForce>
                <TcpRelayWorkerCount>1</TcpRelayWorkerCount>
            </IceCandidates>
        </WebRTC>
    </Providers>

    <Publishers>
        <OVT>
            <Port>9000</Port>
            <WorkerCount>1</WorkerCount>
        </OVT>
        <LLHLS>
            <!--
            OME only supports h2, so LLHLS works over HTTP/1.1 on non-TLS ports.
            LLHLS works with higher performance over HTTP/2,
            so it is recommended to use a TLS port.
            -->
            <Port>3333</Port>
            <!-- If you want to use TLS, specify the TLS port -->
            <TLSPort>3334</TLSPort>
            <WorkerCount>1</WorkerCount>
        </LLHLS>
        <WebRTC>
            <Signalling>
                <Port>3333</Port>
                <TLSPort>3334</TLSPort>
                <WorkerCount>1</WorkerCount>
            </Signalling>
            <IceCandidates>
                <IceCandidate>*:10000-10005/udp</IceCandidate>
                <!--
                    If you want to stream WebRTC over TCP, specify IP:Port for TURN server.
                    This uses the TURN protocol, which delivers the stream from the built-in TURN server to the player's TURN client over TCP.
                    For detailed information, refer https://airensoft.gitbook.io/ovenmediaengine/streaming/webrtc-publishing#webrtc-over-tcp
                -->
                <TcpRelay>*:3478</TcpRelay>
                <!-- TcpForce is an option to force the use of TCP rather than UDP in WebRTC streaming. (You can omit ?transport=tcp accordingly.) If <TcpRelay> is not set, playback may fail. -->
                <TcpForce>true</TcpForce>
                <TcpRelayWorkerCount>1</TcpRelayWorkerCount>
            </IceCandidates>
        </WebRTC>
    </Publishers>
</Bind>

    <!--
        Enable this configuration if you want to use API Server

        <AccessToken> is a token for authentication, and when you invoke the API, you must put "Basic base64encode(<AccessToken>)" in the "Authorization" header of HTTP request.
        For example, if you set <AccessToken> to "ome-access-token", you must set "Basic b21lLWFjY2Vzcy10b2tlbg==" in the "Authorization" header.
    -->
    <!--
    <Managers>
        <Host>
            <Names>
                <Name>*</Name>
            </Names>
            <TLS>
                <CertPath>path/to/file.crt</CertPath>
                <KeyPath>path/to/file.key</KeyPath>
                <ChainCertPath>path/to/file.crt</ChainCertPath>
            </TLS>
        </Host>
        <API>
            <AccessToken>ome-access-token</AccessToken>

            <CrossDomains>
                <Url>*.airensoft.com</Url>
                <Url>http://*.sub-domain.airensoft.com</Url>
                <Url>http?://airensoft.*</Url>
            </CrossDomains>
        </API>
    </Managers>
    -->

    <VirtualHosts>
        <!-- You can use wildcard like this to include multiple XMLs -->
        <VirtualHost include="VHost*.xml" />
        <VirtualHost>
            <Name>default</Name>
            <!--Distribution is a value that can be used when grouping the same vhost distributed across multiple servers. This value is output to the events log, so you can use it to aggregate statistics. -->
            <Distribution>ovenmediaengine.com</Distribution>

            <!-- Settings for multi ip/domain and TLS -->
            <Host>
                <Names>
                    <!-- Host names
                        <Name>stream1.airensoft.com</Name>
                        <Name>stream2.airensoft.com</Name>
                        <Name>*.sub.airensoft.com</Name>
                        <Name>192.168.0.1</Name>
                    -->
                    <Name>*</Name>
                </Names>
                <!--
                <TLS>
                    <CertPath>path/to/file.crt</CertPath>
                    <KeyPath>path/to/file.key</KeyPath>
                    <ChainCertPath>path/to/file.crt</ChainCertPath>
                </TLS>
                -->
            </Host>

            <!--
            Refer https://airensoft.gitbook.io/ovenmediaengine/signedpolicy
            <SignedPolicy>
                <PolicyQueryKeyName>policy</PolicyQueryKeyName>
                <SignatureQueryKeyName>signature</SignatureQueryKeyName>
                <SecretKey>aKq#1kj</SecretKey>

                <Enables>
                    <Providers>rtmp,webrtc,srt</Providers>
                    <Publishers>webrtc,llhls</Publishers>
                </Enables>
            </SignedPolicy>
            -->

            <!--
            <AdmissionWebhooks>
                <ControlServerUrl></ControlServerUrl>
                <SecretKey></SecretKey>
                <Timeout>3000</Timeout>
                <Enables>
                    <Providers>rtmp,webrtc,srt</Providers>
                    <Publishers>webrtc,llhls</Publishers>
                </Enables>
            </AdmissionWebhooks>
            -->

            <!-- <Origins>
                <Properties>
                    <NoInputFailoverTimeout>3000</NoInputFailoverTimeout>
                    <UnusedStreamDeletionTimeout>60000</UnusedStreamDeletionTimeout>
                </Properties>
                <Origin>
                    <Location>/app/stream</Location>
                    <Pass>
                        <Scheme>ovt</Scheme>
                        <Urls><Url>origin.com:9000/app/stream_720p</Url></Urls>
                    </Pass>
                    <ForwardQueryParams>false</ForwardQueryParams>
                </Origin>
                <Origin>
                    <Location>/app/</Location>
                    <Pass>
                        <Scheme>ovt</Scheme>
                        <Urls><Url>origin.com:9000/app/</Url></Urls>
                    </Pass>
                </Origin>
                <Origin>
                    <Location>/edge/</Location>
                    <Pass>
                        <Scheme>ovt</Scheme>
                        <Urls><Url>origin.com:9000/app/</Url></Urls>
                    </Pass>
                </Origin>
            </Origins> -->

            <!-- Settings for applications -->
            <Applications>
                <Application>
                    <Name>app</Name>
                    <!-- Application type (live/vod) -->
                    <Type>live</Type>
                    <OutputProfiles>
                        <!-- Enable this configuration if you want to hardware acceleration using GPU -->
                        <HardwareAcceleration>false</HardwareAcceleration>
                        <OutputProfile>
                            <Name>bypass_stream</Name>
                            <OutputStreamName>${OriginStreamName}</OutputStreamName>
                            <Encodes>
                                <Audio>
                                    <Bypass>true</Bypass>
                                </Audio>
                                <Video>
                                    <Bypass>true</Bypass>
                                </Video>
                                <Audio>
                                    <Codec>opus</Codec>
                                    <Bitrate>128000</Bitrate>
                                    <Samplerate>48000</Samplerate>
                                    <Channel>2</Channel>
                                </Audio>
                                <!--
                                <Video>
                                    <Codec>vp8</Codec>
                                    <Bitrate>1024000</Bitrate>
                                    <Framerate>30</Framerate>
                                    <Width>1280</Width>
                                    <Height>720</Height>
                                    <Preset>faster</Preset>
                                </Video>
                                -->
                            </Encodes>
                        </OutputProfile>
                    </OutputProfiles>
                    <Providers>
                        <OVT />
                        <WebRTC />
                        <RTMP />
                        <SRT />
                        <MPEGTS>
                            <StreamMap>
                                <!--
                                    Set the stream name of the client connected to the port to "stream_${Port}"
                                    For example, if a client connects to port 4000, OME creates a "stream_4000" stream
                                    <Stream>
                                        <Name>stream_${Port}</Name>
                                        <Port>4000,4001-4004</Port>
                                    </Stream>
                                    <Stream>
                                        <Name>stream_4005</Name>
                                        <Port>4005</Port>
                                    </Stream>
                                -->
                                <Stream>
                                    <Name>stream_${Port}</Name>
                                    <Port>4000</Port>
                                </Stream>
                            </StreamMap>
                        </MPEGTS>
                        <RTSPPull />
                        <WebRTC>
                            <Timeout>30000</Timeout>
                        </WebRTC>
                    </Providers>
                    <Publishers>
                        <AppWorkerCount>1</AppWorkerCount>
                        <StreamWorkerCount>8</StreamWorkerCount>
                        <OVT />
                        <WebRTC>
                            <Timeout>30000</Timeout>
                            <Rtx>false</Rtx>
                            <Ulpfec>false</Ulpfec>
                            <JitterBuffer>false</JitterBuffer>
                        </WebRTC>
                        <LLHLS>
                            <ChunkDuration>0.2</ChunkDuration>
                            <SegmentDuration>6</SegmentDuration>
                            <SegmentCount>10</SegmentCount>
                            <CrossDomains>
                                <Url>*</Url>
                            </CrossDomains>
                        </LLHLS>
                    </Publishers>
                </Application>
            </Applications>
        </VirtualHost>
    </VirtualHosts>
</Server>

OvenMediaEngine supports multiple protocols for input from various live sources, without compromising basic usability. This allows you to publish a variety of live sources with sub-second latency. See the sub-page for more information.

From version 0.10.4, MPEG-2 TS input is supported. The supported codecs are H.264, AAC(ADTS). Supported codecs will continue to be added. And the current version only supports basic MPEG-2 TS with 188 bytes packet size. Since the information about the input stream is obtained using PAT and PMT, the client must send this table information as required.

Configuration

To enable MPEG-2 TS, you must bind the ports fist and map the bound ports and streams.

Bind

To use multiple streams, it is necessary to bind multiple ports, so we provide a way to bind multiple ports as in the example below. You can use the dash to specify the port as a range, such as Start port-End port, and multiple ports using commas.

Stream mapping

First, name the stream and map the port bound above. The macro ${Port} is provided to map multiple streams at once. Check out the example below.

<Server>
    ...
    <Bind>
        <Providers>
            <MPEGTS>
                <!--
                    Listen on port 4000,4001,4004,4005
                    This is just a demonstration to show that
                    you can configure the port in several ways
                -->
                <Port>4000-4001,4004,4005/udp</Port>
            </MPEGTS>
        </Providers>
    </Bind>
    ...
    <VirtualHosts>
        <VirtualHost>
            <Application>
                <Providers>
                    <MPEGTS>
                        <StreamMap>
                            <!--
                                Set the stream name of the client connected to the
                                port to "stream_${Port}"
                                For example, if a client connets to port 4000,
                                OME creates a "stream_4000" stream
                            -->
                            <Stream>
                                <Name>stream_${Port}</Name>
                                <Port>4000-4001,4004</Port>
                            </Stream>
                            <Stream>
                                <Name>stream_name_for_4005_port</Name>
                                <Port>4005</Port>
                            </Stream>
                        </StreamMap>
                    </MPEGTS>
                </Providers>
            <Application>
        </VirtualHost>
    </VirtualHosts>
</Server>

Publish

This is an example of publishing using FFMPEG.

# Video / Audio
ffmpeg.exe -re -stream_loop -1 -i <file.ext> -c:v libx264 -bf 0 -x264-params keyint=30:scenecut=0  -acodec aac -pes_payload_size 0 -f mpegts udp://<IP>:4000?pkt_size=1316

# Video only
ffmpeg.exe -re -stream_loop -1 -i <file.ext> -c:v libx264 -bf 0 -x264-params keyint=30:scenecut=0  -an -f mpegts udp://<IP>:4000?pkt_size=1316

# Audio only
ffmpeg.exe -re -stream_loop -1 -i <file.ext> -vn  -acodec aac -pes_payload_size 0 -f mpegts udp://<IP>:4000?pkt_size=1316

Getting Started with default settings

OvenMediaEngine provides the Docker image from AirenSoft's Docker Hub (airensoft/ovenmediaengine) repository. After installing Docker, you can simply run the following command:

docker run --name ome -d -e OME_HOST_IP=Your.HOST.IP.Address \
-p 1935:1935 -p 9999:9999/udp -p 9000:9000 -p 3333:3333 -p 3478:3478 -p 10000-10009:10000-10009/udp \
airensoft/ovenmediaengine:latest

You can set the following environment variables.

Environment Variables

Getting Started with Complex Configuration

When you need to install a certificate in OME or apply a complex configuration, you can do it by following the procedure below to modify Server.xml inside Docker.

OvenMediaEngine docker container loads configuration files from the following path.

There are many ways to change files inside a Docker container, but this document describes how to change them using Docker's bind mounts.

Setup

Create the directories

export OME_DOCKER_HOME=/opt/ovenmediaengine
sudo mkdir -p $OME_DOCKER_HOME/conf
sudo mkdir -p $OME_DOCKER_HOME/logs

# Set permissions for the created directory if necessary.
sudo chgrp -R docker $OME_DOCKER_HOME
sudo chmod -R 775 $OME_DOCKER_HOME

# If you want to use OME_HOME permanently, add the following line to the ~/.profile file for bash, for other shells, you can do it accordingly.
echo "export OME_DOCKER_HOME=/opt/ovenmediaengine" >> ~/.profile

Copy the default configurations from Docker container

docker run -d --name tmp-ome airensoft/ovenmediaengine:latest
docker cp tmp-ome:/opt/ovenmediaengine/bin/origin_conf/Server.xml $OME_DOCKER_HOME/conf
docker cp tmp-ome:/opt/ovenmediaengine/bin/origin_conf/Logger.xml $OME_DOCKER_HOME/conf
docker rm -f tmp-ome

Copy the certificate files to the directory

Copy your PEM certificate files to the path below if you need to enable TLS. The destination file names must match if using the default configuration. If you want to change the file name, you can do so by editing the Server.xml configuration file. See TLS Encryption for details.

cp /your/server_certificate_file.crt $OME_DOCKER_HOME/conf/cert.crt
cp /your/certificate_key_file.key $OME_DOCKER_HOME/conf/cert.key
cp /your/ca_bundle_file.ca-bundle $OME_DOCKER_HOME/conf/cert.ca-bundle

Modify Server.xml if necessary

vi $OME_DOCKER_HOME/conf/Server.xml

Running

Run Docker Container

The command below will make your OvenMediaEngine docker container run with $OME_DOCKER_HOME/conf/Server.xml and $OME_DOCKER_HOME/conf/Logger.xml files on your host. It will also create $OME_DOCKER_HOME/logs/ovenmediaengine.log file.

docker run -d -it --name ome -e OME_HOST_IP=Your.HOST.IP.Address \
-v $OME_DOCKER_HOME/conf:/opt/ovenmediaengine/bin/origin_conf \
-v $OME_DOCKER_HOME/logs:/var/log/ovenmediaengine \
-p 1935:1935 -p 9999:9999/udp -p 9000:9000 -p 3333:3333 -p 3478:3478 \
-p 10000-10009:10000-10009/udp \
airensoft/ovenmediaengine:latest

Check the log file

tail -f $OME_DOCKER_HOME/logs/ovenmediaengine.log

Restart Docker Container

docker restart ome

Stop and Remove Container

docker stop ome
docker rm ome

Scheduled Channel that allows you to create a live channel by scheduling pre-recorded files has been added to OvenMediaEngine. Other services or software call this Pre-recorded Live or File Live, but OvenMediaEngine plans to expand the function to organize live channels as a source, so we named it Scheduled Channel.

Getting Started

To use this feature, activate Schedule Provider as follows.

<VirtualHost>
    <Applications>
        <Providers>
            <Schedule>
                <MediaRootDir>/opt/ovenmediaengine/media</MediaRootDir>
                <ScheduleFilesDir>/opt/ovenmediaengine/media</ScheduleFilesDir>
            </Schedule>
            ...

MediaRootDir Root path where media files are located. If you specify a relative path, the directory where the config file is located is root.

ScheduleFileDir Root path where the schedule file is located. If you specify a relative path, the directory where the config file is located is root.

Schedule Files

Scheduled Channel creates/updates/deletes streams by creating/editing/deleting files with the .sch extension in the ScheduleFileDir path. Schedule files (.sch) use the following XML format. When a <Stream Name>.sch file is created in ScheduleFileDir, OvenMediaEngine analyzes the file and creates a Schedule Channel with <Stream Name>. If the contents of <Stream Name>.sch are changed, the Schedule Channel is updated, and if the file is deleted, the stream is deleted.

<?xml version="1.0" encoding="UTF-8"?>
<Schedule>
    <Stream>
        <Name>tv1</Name> <!-- optional, using filename without ext -->
        <BypassTranscoder>false</BypassTranscoder>
        <VideoTrack>true</VideoTrack>
        <AudioTrack>true</AudioTrack>
    </Stream>

    <FallbackProgram> <!-- Not yet supported -->
        <Item url="file://sample.mp4" start="0" duration="60000"/>
    </FallbackProgram>

    <Program name="1" scheduled="2023-09-27T13:21:15.123+09:00" repeat="true">
        <Item url="stream://default/app/stream1" duration="60000"/>
    </Program>
    <Program name="2" scheduled="2022-03-14T15:10:0.0+09:00" repeat="true">
        <Item url="file://sample.mp4" start="0" duration="60000"/>
        <Item url="stream://default/app/stream1" duration="60000"/> <!-- Not yet supported -->
        <Item url="file://sample.mp4" start="60000" duration="120000"/>
    </Program>
</Schedule>

Stream (required) This is the stream information that the Channel needs to create.

Stream.Name (optional) It's the stream's name. This is a reference value extracted from the file name for usage. It's recommended to set it same for consistency, although it's for reference purposes.

Stream.BypassTranscoder (optional, default: false) Set to true if transcoding is not desired.

Stream.VideoTrack (optional, default: true) Determines whether to use the video track. If VideoTrack is set to true and there's no video track in the Item, an error will occur.

Stream.AudioTrack (optional, default: true) Determines whether to use the audio track. If AudioTrack is set to true and there's no audio track in the Item, an error will occur.

FallbackProgram (optional) It is a program that switches automatically when there is no program scheduled at the current time or an error occurs in an item. If the program is updated at the current time or the item returns to normal, it will fail back to the original program. Both files and live can be used for items in FallbackProgram. However, it is recommended to use a stable file.

Program (optional) Schedules a program. The name is an optional reference value. If not set, a random name will be assigned. Set the start time in ISO8601 format in the scheduled attribute. Decide whether to repeat the Items when its playback ends.

Program.Item (optional) Configures the media source to broadcast.

The url points to the location of the media source. If it starts with file://, it refers to a file within the MediaRootDir directory. If it starts with stream://, it refers to another stream within the same OvenMediaEngine. stream:// has the following format: stream://vhost_name/app_name/stream_name

For 'file' cases, the start attribute can be set in milliseconds to indicate where in the file playback should start. duration indicates the playback time of that item in milliseconds. After the duration ends, it moves to the next item. Both 'start' and 'duration' are optional. If not set, start defaults to 0, and duration defaults to the file's duration; if not specified, the media file will be played until its full duration.

Application : Persistent Live Channel

This function is a scheduling channel, but it can be used for applications such as creating a permanent stream as follows.

<?xml version="1.0"?>
<Schedule>
        <Stream>
                <Name>stream</Name>
                <BypassTranscoder>false</BypassTranscoder>
                <VideoTrack>true</VideoTrack>
                <AudioTrack>true</AudioTrack>
        </Stream>
        <FallbackProgram>
                <Item url="file://hevc.mov"/>
                <Item url="file://avc.mov"/>
        </FallbackProgram>

        <Program name="origin" scheduled="2000-01-01T20:57:00.000+09" repeat="true">
                <Item url="stream://default/app/input" duration="-1" />
        </Program>
</Schedule>

This channel normally plays default/app/input, but when live input is stopped, it plays the file in FallbackProgram. This will last forever until the .sch file is deleted. One trick was to set the origin program's schedule time to year 2000 so that this stream would play unconditionally.

REST API

ScheduledChannel can also be controlled via API. Please refer to the page below.

Overview and Features

The OME Docker Launcher is a tool that simplifies the process of deploying and managing the OvenMediaEngine (OME) application using Docker containers. This tool can be used by developers and system administrators who want to quickly deploy and test the OME application in a Docker environment.

The OME Docker Launcher provides a set of commands that allow users to easily manage the OME Docker container. These commands include:

• setup

  • This command pulls the OME Docker image(airensoft/ovenmediaengine:latest) from the Docker registry and copies the necessary configuration files to a specified location. This command needs to be run before starting the OME Docker container.

• start

  • This command creates and starts the Docker container. Once the container is started, the OME application can be accessed through a web browser using the container's IP address.

• sh

  • This command launches a bash shell inside the running OME Docker container, allowing users to execute commands and interact with the container.

• status

  • This command displays the status of the running OME Docker container, including information such as the container name, and running status.

• stop

  • This command stops the running OME Docker container.

• restart

  • This command stops and then starts the OME Docker container.

Using the OME Docker Launcher, you can easily set up and manage an OME Docker container, without having to manually configure and manage the Docker container. This can save time and effort, especially for users who are not familiar with Docker or who do not want to spend time manually setting up and configuring the OME application.

Installation

Run the following command in your Linux shell.

curl -OL 'https://raw.githubusercontent.com/AirenSoft/OvenMediaEngine/master/misc/ome_docker_launcher.sh' && chmod +x ome_docker_launcher.sh

Below is an example of execution:

$ curl -OL 'https://raw.githubusercontent.com/AirenSoft/OvenMediaEngine/master/misc/ome_docker_launcher.sh' && chmod +x ome_docker_launcher.sh
$ ./ome_docker_launcher.sh -h

 ▄██████▀███▄
█████▀ ▄██████  OvenMediaEngine Launcher v0.1
███▄▄▄▄▀▀▀▀███
██████▀ ▄█████  https://github.com/AirenSoft/OvenMediaEngine
 ▀███▄██████▀

• Usage: ./ome_docker_launcher.sh [OPTIONS] COMMAND ...

• Options:
  -h, --help                        Show this help message and exit
  -v, --version                     Show the version and exit
  -d, --debug                       Show debug log
  -b, --hide_banner                 Hide the banner
  -m, --monochrome                  Disable colors

• Commands:
  setup       Download the latest Docker image and setup directories for the container
  start       Start a docker container
  sh          Run a shell in the docker container
  status      Show the status of the docker container
  stop        Stop the docker container
  restart     Restart the docker container

Commands

OME Docker Launcher can be executed in the following format:

• Usage: ./ome_docker_launcher.sh [OPTIONS] COMMAND ...

• Options:
  -h, --help                        Show this help message and exit
  -v, --version                     Show the version and exit
  -d, --debug                       Show debug log
  -b, --hide_banner                 Hide the banner
  -m, --monochrome                  Disable colors

• Commands:
  setup       Download the latest Docker image and setup directories for the container
  start       Start a docker container
  sh          Run a shell in the docker container
  status      Show the status of the docker container
  stop        Stop the docker container
  restart     Restart the docker container

setup

The setup command pulls the OME Docker image from the Docker registry and copies the necessary configuration files to the host's /usr/share/ovenmediaengine directory. Additionally, it initializes the log path and crash dump path that will be mounted into the container when it is run.

This command prepares the host environment for running the OME Docker container and sets up the necessary directories and configurations for the container to run correctly.

If you run the "setup" command, the following files and directories will be created:

• /usr/share/ovenmediaengine/conf

  • This directory contains the OME configuration files and is mounted into the container when it is run.

• /usr/share/ovenmediaengine/logs

  • This directory is the log path for OME and is mounted into the container when it is run. Log files generated by OME will be stored in this directory.

• /usr/share/ovenmediaengine/dumps

  • This directory is the crash dump path for OME and is mounted into the container when it is run. Crash dumps generated by OME will be stored in this directory.

$ ./ome_docker_launcher.sh setup

 ▄██████▀███▄
█████▀ ▄██████  OvenMediaEngine Launcher v0.1
███▄▄▄▄▀▀▀▀███
██████▀ ▄█████  https://github.com/AirenSoft/OvenMediaEngine
 ▀███▄██████▀

• Creating configuration directory /usr/share/ovenmediaengine/conf
• Copying configuration to /usr/share/ovenmediaengine/conf
• Copying logs directory
• Copying crash dump directory
• OvenMediaEngine is ready to start!

If you want to change the settings, please modify /usr/share/ovenmediaengine/conf/Server.xml
If you want to start OvenMediaEngine, please run ./ome_docker_launcher.sh start

If you want to change the configuration of OME, you can edit the /usr/share/ovenmediaengine/conf/Server.xml file. This file contains the server configuration settings for OME, such as the server's IP address, port, and SSL settings. Once you have made changes to this file, you will need to restart the OME Docker container for the changes to take effect. You can do this by running the restart command provided by the OME Docker Launcher.

Certificate Installation

To install a certificate in OvenMediaEngine, copy the certificate files to /usr/share/ovenmediaengine/conf with the following names:

If you want to change the file names, you can modify Server.xml.

start

Once the setup phase is complete, you can use the start command to run the OME Docker container. The start command creates and starts the Docker container, enabling the OME application to receive stream packets using protocols such as RTMP and SRT. Before running the start command, ensure that the necessary configuration files have been copied to the host's /usr/share/ovenmediaengine directory by running the setup command.

$ ./ome_docker_launcher.sh start

 ▄██████▀███▄
█████▀ ▄██████  OvenMediaEngine Launcher v0.1
███▄▄▄▄▀▀▀▀███
██████▀ ▄█████  https://github.com/AirenSoft/OvenMediaEngine
 ▀███▄██████▀

• Starting OvenMediaEngine...
• Obtaining the port list from /usr/share/ovenmediaengine/conf/Server.xml
  - RTMP Provider is configured to use 1935 (Port)
  - SRT Provider is configured to use 9999 (Port)
  - WebRTC Provider is configured to use 3333 (Port)
  - WebRTC Provider is configured to use 3334 (TLSPort)
  - WebRTC Provider is configured to use 10000-10004/UDP (IceCandidate)
  - WebRTC Provider is configured to use 3478 (TcpRelay)
  - OVT Publisher is configured to use 9000 (Port)
  - LLHLS Publisher is configured to use 3333 (Port)
  - LLHLS Publisher is configured to use 3334 (TLSPort)
  - WebRTC Publisher is configured to use 3333 (Port)
  - WebRTC Publisher is configured to use 3334 (TLSPort)
  - WebRTC Publisher is configured to use 10000-10004/UDP (IceCandidate)
  - WebRTC Publisher is configured to use 3478 (TcpRelay)
• Starting a container: ovenemediaengine
  docker> 7235ff9f80762b6e7b27ba3a9773f5584033d55c113340dabf0779e8f5cf53bb
• OvenMediaEngine is started successfully!

$ OME_HOST_IP=1.2.3.4 ./ome_docker_launcher.sh start
...
• OvenMediaEngine is started successfully!

$ tail -f /usr/share/ovenmediaengine/logs/ovenmediaengine.log
...
[2023-11-01 00:00:00.000] I [OvenMediaEngine:1] ICE | ice_port_manager.cpp:305  | ICE candidate found: 1.2.3.4:40000
...

OME_HOST_IP
OME_RTMP_PROV_PORT
OME_WEBRTC_CANDIDATE_IP
OME_WEBRTC_CANDIDATE_PORT
OME_WEBRTC_SIGNALLING_PORT
OME_WEBRTC_SIGNALLING_TLS_PORT
OME_WEBRTC_TCP_RELAY_PORT

sh

The sh command allows you to enter into the shell of the running container. You can use this command for troubleshooting purpose. Once you enter into the container's shell, you can execute any commands just like you do in a normal Linux shell. This allows you to inspect the container's internal state and debug any issues that you might be facing with the container or the application running inside it.

$ ./ome_docker_launcher.sh sh

 ▄██████▀███▄
█████▀ ▄██████  OvenMediaEngine Launcher v0.1
███▄▄▄▄▀▀▀▀███
██████▀ ▄█████  https://github.com/AirenSoft/OvenMediaEngine
 ▀███▄██████▀

• Run a shell in the running container: ID: 7235ff9f8076
root@7235ff9f8076:/opt/ovenmediaengine/bin# ps -ef
UID          PID    PPID  C STIME TTY          TIME CMD
root           1       0  0 10:29 ?        00:00:01 /opt/ovenmediaengine/bin/OvenMediaEngine -c origin_conf
root          53       0  0 10:44 pts/0    00:00:00 /bin/bash
root          61      53  0 10:44 pts/0    00:00:00 ps -ef
root@7235ff9f8076:/opt/ovenmediaengine/bin# top -bn1
top - 10:44:44 up 333 days,  3:33,  0 users,  load average: 0.44, 0.78, 0.78
Tasks:   3 total,   1 running,   2 sleeping,   0 stopped,   0 zombie
%Cpu(s):  1.4 us,  0.3 sy,  0.0 ni, 98.3 id,  0.0 wa,  0.0 hi,  0.0 si,  0.0 st
MiB Mem : 128723.7 total,  10529.4 free,  31268.5 used,  86925.7 buff/cache
MiB Swap:  31250.0 total,  30345.8 free,    904.2 used.  96221.5 avail Mem

    PID USER      PR  NI    VIRT    RES    SHR S  %CPU  %MEM     TIME+ COMMAND
      1 root      20   0  320136  21812  15772 S   0.0   0.0   0:01.48 OvenMediaEngine
     53 root      20   0    4116   3456   2896 S   0.0   0.0   0:00.01 bash
     62 root      20   0    5972   3160   2732 R   0.0   0.0   0:00.00 top
root@7235ff9f8076:/opt/ovenmediaengine/bin#

status

The status command shows the current execution status of the container. If the container is running, it displays the ID and name of the container. This command helps you to verify whether the container is up and running or not. If the container is not running, you can use the start command to start the container.

$ ./ome_docker_launcher.sh status

 ▄██████▀███▄
█████▀ ▄██████  OvenMediaEngine Launcher v0.1
███▄▄▄▄▀▀▀▀███
██████▀ ▄█████  https://github.com/AirenSoft/OvenMediaEngine
 ▀███▄██████▀

• Container is running: ID: 7235ff9f8076, name: ovenemediaengine

stop

The stop command stops the running container and removes it from the list of Docker containers.

$ ./ome_docker_launcher.sh stop

 ▄██████▀███▄
█████▀ ▄██████  OvenMediaEngine Launcher v0.1
███▄▄▄▄▀▀▀▀███
██████▀ ▄█████  https://github.com/AirenSoft/OvenMediaEngine
 ▀███▄██████▀

• Stopping a container: ovenemediaengine
  docker> ovenemediaengine
• Removing a container: ovenemediaengine
  docker> ovenemediaengine
• OvenMediaEngine is stopped successfully

restart

The restart command restarts the container. This is useful when you need to apply changes to the Server.xml.

$ ./ome_docker_launcher.sh stop

 ▄██████▀███▄
█████▀ ▄██████  OvenMediaEngine Launcher v0.1
███▄▄▄▄▀▀▀▀███
██████▀ ▄█████  https://github.com/AirenSoft/OvenMediaEngine
 ▀███▄██████▀

• Restarting a container: ovenemediaengine
  docker> ovenemediaengine

Troubleshootings

Enable debug log

If you encounter any problems during the execution, try using the -d option in the [OPTIONS] to view detailed logs. This option shows the command sets and their results that are executed internally.

$ ./ome_docker_launcher.sh -d stop

 ▄██████▀███▄
█████▀ ▄██████  OvenMediaEngine Launcher v0.1
███▄▄▄▄▀▀▀▀███
██████▀ ▄█████  https://github.com/AirenSoft/OvenMediaEngine
 ▀███▄██████▀

• Stopping a container: ovenemediaengine
 ┌── /usr/bin/docker stop ovenemediaengine
   docker> ovenemediaengine
 └── Succeeded
• Removing a container: ovenemediaengine
 ┌── /usr/bin/docker rm ovenemediaengine
   docker> ovenemediaengine
 └── Succeeded
• OvenMediaEngine is stopped successfully

Get the crash dump of OME in the container

If OME terminates abnormally, providing the crash dump to the OME team can be helpful. The crash dump is stored in the /usr/share/ovenmediaengine/dumps directory, which is created during the setup phase. You can find the dump file named crash_<yyyymmdd>.dump in this directory.

Sharing those log and dump file would be greatly appreciated and helpful for the development of OME.

Configuration

Providers ingests streams that come from a media source. OvenMediaEngine supports RTMP protocol. You can set it in the configuration as follows:

<Server>
    ...
    <Bind>
        <Providers>
            <RTMP>
              <Port>1935</Port>
            </RTMP>
        </Providers>
    </Bind>
    ...
    <VirtualHosts>
        <VirtualHost>
            <Application>
                <Providers>
                    <RTMP>
                    ...
                </RTMP>
                ...
                </Providers>
            <Application>
        </VirtualHost>
    </VirtualHosts>
</Server>

When a live source inputs to the <Application>, a stream is automatically created in the <Application>. The created stream is passed to Encoder and Publisher.

RTMP live stream

If you set up a live stream using an RTMP-based encoder, you need to set the following in Server.xml:

<Application>
   <Providers>
      <RTMP>
         <BlockDuplicateStreamName>true</BlockDuplicateStreamName>
      </RTMP>
   </Providers>
<Application>

• <BlockDuplicateStreamName> is a policy for streams that are inputted as overlaps.

<BlockDuplicateStreamName> works with the following rules:

Publish

If you want to publish the source stream, you need to set the following in the Encoder:

• URL RTMP://<OvenMediaEngine IP>[:<RTMP Listen Port>]/<App Name]>

• Stream Key Stream Name

If you use the default configuration, the <RTMP><ListenPort> is 1935, which is the default port for RTMP. So it can be omitted. Also, since the Application named app is created by default in the default configuration, you can enter app in the [App Name]. You can define a Stream Key and use it in the Encoder, and the Streaming URL will change according to the Stream Key.

Moreover, some encoders can include a stream key in the URL, and if you use these encoders, you need to set it as follows:

• URL RTMP://<OvenMediaEngine IP>[:<RTMP Listen Port>/<App Name>/<Stream Name>

Example with OvenLiveKit (OvenStreamEncoder)

If you are using the default configuration, press the URL button in the top right corner of OvenStreamEnoder, and enter the URL as shown below:

Also, <App name> and <Stream name> can be changed and used as desired in the configuration.

Example with OBS

If you use the default configuration, set the OBS as follows:

You can set the Stream Key to any name you like at any time.

Now with Multiplex Channel, you can configure ABR by combining multiple input streams into one, or duplicate external streams and send them to other applications.

Multiplex Channel takes tracks from other local streams and organizes them into its own tracks. This will pull in tracks that have already been encoded, which can be useful if you want to change codecs or adjust the quality once again. And the Multiplex Channel is sent to the publisher, unconditionally bypassing the encoder.

Configuration

To use this feature, enable Multiplex Provider in Server.xml.

<VirtualHost>
    <Applications>
	<Providers>
		...
		<Multiplex>
			<MuxFilesDir>mux_files</MuxFilesDir>
		</Multiplex>
	</Providers>

Multiplex Channels are created through .mux files or API. MuxFilesDir is the path where the .mux files are located and can be set to an absolute system path or relative to the path where the Server.xml configuration is located.

The Multiplex Provider monitors the MuxFilesDir path, and when a mux file is created, it parses the file and creates a multiplex channel. When the mux file is modified, the channel is deleted and created again, and when the mux file is deleted, the channel is deleted.

Mux file format

mux files can be created or deleted while the system is running. This works dynamically. The mux file has the format below.

<?xml version="1.0" encoding="UTF-8"?>
<Multiplex>

    <OutputStream>
        <Name>stream</Name>
    </OutputStream>

    <SourceStreams>
        <SourceStream>
            <Name>tv1</Name>
            <Url>stream://default/app/tv1</Url>
            <TrackMap>
                <Track>
                    <SourceTrackName>bypass_video</SourceTrackName>
                    <NewTrackName>tv1_video</NewTrackName>
                </Track>
                <Track>
                    <SourceTrackName>bypass_audio</SourceTrackName>
                    <NewTrackName>tv1_audio</NewTrackName>
                </Track>
                <Track>
                    <SourceTrackName>opus</SourceTrackName>
                    <NewTrackName>tv1_opus</NewTrackName>
                </Track>
            </TrackMap>
        </SourceStream>
        <SourceStream>
            <Name>tv2</Name>
            <Url>stream://default/app/tv2</Url>

            <TrackMap>
                <Track>
                    <SourceTrackName>bypass_video</SourceTrackName>
                    <NewTrackName>tv2_video</NewTrackName>
                </Track>
                <Track>
                    <SourceTrackName>bypass_audio</SourceTrackName>
                    <NewTrackName>tv2_audio</NewTrackName>
                </Track>
                <Track>
                    <SourceTrackName>opus</SourceTrackName>
                    <NewTrackName>tv2_opus</NewTrackName>
                </Track>
            </TrackMap>

        </SourceStream>
    </SourceStreams>

    <Playlists>
        <Playlist>
            <Name>LLHLS ABR</Name>
            <FileName>abr</FileName>

            <Rendition>
                <Name>1080p</Name>
                <Video>tv1_video</Video>
                <Audio>tv1_audio</Audio>
            </Rendition>
            <Rendition>
                <Name>720p</Name>
                <Video>tv2_video</Video>
                <Audio>tv2_audio</Audio>
            </Rendition>
        </Playlist>
    </Playlists>

</Multiplex>

OutputStream This is information about the stream to be newly created. It must be the same as the file name. <stream name>.mux

SourceStreams Specifies the internal stream to be muxed. You can also load streams from other VHosts or applications in the format stream://<vhost name>/<app name>/<stream name>. Because multiple streams are muxed into one stream, track names may be duplicated. Therefore, it is necessary to change the Track name for each SourceStream through <TrackMap>. <SourceTrackName> is either <OutputProfile><Encodes><Video><Name> or <OutputProfile><Encodes><Audio><Name>.

Playlist The same format as <OutputProfile> must be used, and the Playlist must be constructed using the newly mapped Track name in SourceStreams' TrackMap. The Playlist configured here exists only in this stream. The Playlist's FileName must be unique throughout the application.

REST API

MultiplexChannel can also be controlled via API. Please refer to the page below.

OvenMediaEngine uses WebRTC to provide sub-second latency streaming. WebRTC uses RTP for media transmission and provides various extensions.

OvenMediaEngine provides the following features:

Configuration

If you want to use the WebRTC feature, you need to add <WebRTC> element to the <Publishers> and <Ports> in the Server.xml configuration file, as shown in the example below.

ICE

WebRTC uses ICE for connections and specifically NAT traversal. The web browser or player exchanges the Ice Candidate with each other in the Signalling phase. Therefore, OvenMediaEngine provides an ICE for WebRTC connectivity.

If you set IceCandidate to *: 10000-10005/udp, as in the example above, OvenMediaEngine automatically gets IP from the server and generates IceCandidate using UDP ports from 10000 to 10005. If you want to use a specific IP as IceCandidate, specify a specific IP. You can also use only one 10000 UDP Port, not a range, by setting it to *: 10000.

Signalling

OvenMediaEngine has embedded a WebSocket-based signalling server and provides our defined signalling protocol. Also, OvenPlayer supports our signalling protocol. WebRTC requires signalling to exchange Offer SDP and Answer SDP, but this part isn't standardized. If you want to use SDP, you need to create your exchange protocol yourself.

If you want to change the signaling port, change the value of <Ports><WebRTC><Signalling>.

Signalling Protocol

The Signalling protocol is defined in a simple way:

If you want to use a player other than OvenPlayer, you need to develop the signalling protocol as shown above and can integrate OvenMediaEngine.

Streaming

Publisher

Add WebRTC element to Publisher to provide streaming through WebRTC.

Encoding

WebRTC Streaming starts when a live source is inputted and a stream is created. Viewers can stream using OvenPlayer or players that have developed or applied the OvenMediaEngine Signalling protocol.

Also, the codecs supported by each browser are different, so you need to set the Transcoding profile according to the browser you want to support. For example, Safari for iOS supports H.264 but not VP8. If you want to support all browsers, please set up VP8, H.264, and Opus codecs in all transcoders.

WebRTC doesn't support AAC, so when trying to bypass transcoding RTMP input, audio must be encoded as opus. See the settings below.

Playback

If you created a stream as shown in the table above, you can play WebRTC on OvenPlayer via the following URL:

If you use the default configuration, you can stream to the following URL:

• ws://[OvenMediaEngine IP]:3333/app/stream

• wss://[OvenMediaEngine IP]:3333/app/stream

Adaptive Bitrates Streaming (ABR)

OvenMediaEnigne provides adaptive bitrates streaming over WebRTC. OvenPlayer can also play and display OvenMediaEngine's WebRTC ABR URL.

Create Playlist for WebRTC ABR

You can provide ABR by creating a playlist in <OutputProfile> as shown below. The URL to play the playlist is ws[s]://domain[:port]/<app name>/<stream name>/<playlist file name>

<Playlist><Rendition><Video> and <Playlist><Rendition><Audio> can connected using <Encodes><Video><Name> or <Encodes><Audio><Name>.

If <Options><WebRtcAutoAbr> is set to true, OvenMediaEngine will measure the bandwidth of the player session and automatically switch to the appropriate rendition.

Here is an example play URL for ABR in the playlist settings below. wss://domain:13334/app/stream/abr

Multiple codec support in Playlist

WebRTC can negotiate codecs with SDP to support more devices. Playlist can set rendition with different kinds of codec. And OvenMediaEngine includes only renditions corresponding to the negotiated codec in the playlist and provides it to the player.

In the example below, it consists of renditions with H.264 and Opus codecs set and renditions with VP8 and Opus codecs set. If the player selects VP8 in the answer SDP, OvenMediaEngine creates a playlist with only renditions containing VP8 and Opus and passes it to the player.

WebRTC over TCP

Turn on TURN server

You can turn on the TURN server by setting <TcpRelay> in the WebRTC Bind.

Example : <TcpRelay>*:3478</TcpRelay>

WebRTC over TCP with OvenPlayer

You can play the WebRTC stream over TCP by attaching the query transport=tcp to the existing WebRTC play URL as follows.

OvenPlayer automatically sets iceServers by obtaining TURN server information set in <TcpRelay> through signaling with OvenMediaEngine.

Custom player

If you are using custom player, set iceServers like this:

OvenMediaEngine can pull RTSP Stream in two ways. The first way is to use the Stream creation API, and the second way is to use OriginMap or OriginMapStore. The supported codecs are H.264, AAC(ADTS). Supported codecs will continue to be added.

Pulling streams using the Stream Creation API

Pulling streams using the OriginMapStore

Pulling streams using the OriginMap

Configuration

For example, in the above setup, when a player requests "ws://ome.com/app_name/rtsp_stream_name" to stream WebRTC, it pulls the stream from "rtsp://192.168.0.200:554" and publishes it to WebRTC.

Event to trigger pulling

When a playback request comes in from the following URL, RTSP pull starts working according to Origins settings.

TranscodeWebhook allows OvenMediaEngine to use OutputProfiles from the Control Server's response instead of the OutputProfiles in the local configuration (Server.xml). OvenMediaEngine requests OutputProfiles from the Control Server when streams are created, enabling the specification of different profiles for each individual stream.

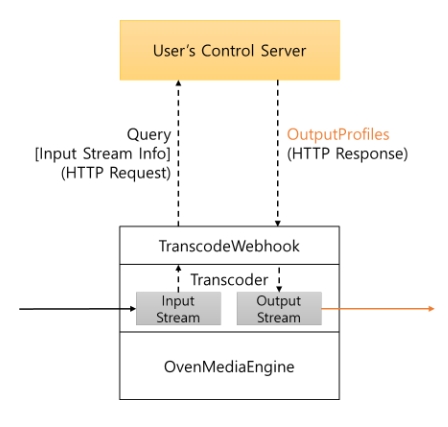

Configuration

Enable (required) You can enable or disable TranscodeWebhook settings.

ControlServerUrl (required) It's the URL of the Control Server, and it supports both HTTP and HTTPS.

SecretKey (optional) This is the Secret Key used to pass authentication for the Control Server. To pass security authentication, an HMAC-SHA1 encrypted value of the HTTP Payload is added to the HTTP Header's X-OME-Signature. This Key is used for generating this value.

Timeout (optional, default: 1500) This is the Timeout value used when connecting to the Control Server.

UseLocalProfilesOnConnectionFailure(optional, default: true) This determines whether to use the OutputProfiles from Local settings in case of communication failure with the Control Server. If it's set to "false," a communication failure with the Control Server will result in a failure to create the Output stream.

UseLocalProfilesOnServerDisallow (optional, default: false) When the Control Server responds with a 200 OK, but "allowed" is set to "false," this policy is followed.

UseLocalProfilesOnErrorResponse (optional, default: false) When the Control Server responds with error status codes such as 400 Bad Request, 404 Not Found, 500 Internal Error, OvenMediaEngine follows this policy.

Protocol

Request (OME → Control Server)

OvenMediaEngine sends requests to the Control Server in the following format.

Response (Control Server → OME)

The Control Server responds in the following format to specify OutputProfiles for the respective stream.

The "outputProfiles" in the JSON is identical to the configuration in Server.xml, and the format is as follows.

OvenMediaEngine supports GPU-based hardware decoding and encoding. Currently supported GPU acceleration devices are Intel's QuickSync and NVIDIA. This article explains how to install the drivers for OvenMediaEngine and set up the configuration to use your GPU.

1. Install Drivers

2. Build & Run

Please refer to the link for how to build and run.

3. Configuration

To use hardware acceleration, set the HardwareAcceleration option to true under OutputProfiles. If this option is enabled, a hardware codec is automatically used when creating a stream, and if it is unavailable due to insufficient hardware resources, it is replaced with a software codec.

Appendix. Support Format

The codecs available using hardware accelerators in OvenMediaEngine are as shown in the table below. Different GPUs support different codecs. If the hardware codec is not available, you should check if your GPU device supports the codec.

D : Decoding, E : Encoding

Reference

HLS based on MPEG-2 TS containers is still useful because it provides high compatibility, including support for older devices. Therefore, OvenMediaEngine decided to officially support HLS version 7+ based on fragmented MP4 containers, called LL-HLS, as well as HLS version 3+ based on MPEG-2 TS containers.

Configuration

To use HLS, you need to add the <HLS> elements to the <Publishers> in the configuration as shown in the following example.

<?xml version="1.0" encoding="UTF-8"?>
<Server version="8">
  <Bind>
    <Publishers>
      <HLS>
        <Port>13333</Port>
        <TLSPort>13334</TLSPort>
        <WorkerCount>1</WorkerCount>
      </HLS>
    </Publishers>
  </Bind>
  <VirtualHosts>
    <VirtualHost>
      <Applications>
        <Application>
          <Publishers>
            <HLS>
              <SegmentCount>5</SegmentCount>
              <SegmentDuration>4</SegmentDuration>
              <DVR>
                <Enable>true</Enable>
                <EventPlaylistType>false</EventPlaylistType>
                <TempStoragePath>/tmp/ome_dvr/</TempStoragePath>
                <MaxDuration>600</MaxDuration>
              </DVR>
              <CrossDomains>
                <Url>*</Url>
              </CrossDomains>
            </HLS>
          </Publishers>
        </Application>
      </Applications>
    </VirtualHost>
  </VirtualHosts>
</Server>

Playback

HLS is ready when a live source is inputted and a stream is created. Viewers can stream using OvenPlayer or other players.

If your input stream is already h.264/aac, you can use the input stream as is like below. If not, or if you want to change the encoding quality, you can do Transcoding.

<OutputProfiles>
    <OutputProfile>
        <Name>bypass_stream</Name>
        <OutputStreamName>${OriginStreamName}</OutputStreamName>
        <Encodes>
            <Audio>
                <Bypass>true</Bypass>
            </Audio>
            <Video>
                <Bypass>true</Bypass>
            </Video>
        </Encodes>
    </OutputProfile>
</OutputProfiles>

HLS Publisher basically creates a playlist.m3u8 Playlist using the first video track and the first audio track. When you create a stream, as shown above, you can play HLS with the following URL:

http[s]://domain[:port]/<app name>/<stream name>/ts:playlist.m3u8

If you use the default configuration, you can start streaming with the following URL:

https://domain:3334/app/<stream name>/ts:playlist.m3u8

We have prepared a test player that you can quickly see if OvenMediaEngine is working. Please refer to the Test Player for more information.

Adaptive Bitrates Streaming (ABR)

HLS can deliver adaptive bitrate streaming. OME encodes the same source with multiple renditions and delivers it to the players. And HLS Player, including OvenPlayer, selects the best quality rendition according to its network environment. Of course, these players also provide option for users to manually select rendition.

See the Adaptive Bitrates Streaming section for how to configure renditions.

HLS Publisher basically creates a playlist.m3u8 Playlist using the first video track and the first audio track. If you want to create a new playlist for ABR, you can add it to Server.xml as follows:

<?xml version="1.0" encoding="UTF-8"?>
<OutputProfile>
  <Name>abr_stream</Name>
  <OutputStreamName>${OriginStreamName}</OutputStreamName>
  <Playlist>
    <Name>abr</Name>
    <FileName>abr</FileName>
    <Options>
      <HLSChunklistPathDepth>0</HLSChunklistPathDepth>
      <EnableTsPackaging>true</EnableTsPackaging>
    </Options>
    <Rendition>
      <Name>SD</Name>
      <Video>video_360</Video>
      <Audio>aac_audio</Audio>
    </Rendition>
    <Rendition>
      <Name>HD</Name>
      <Video>video_720</Video>
      <Audio>aac_audio</Audio>
    </Rendition>
    <Rendition>
      <Name>FHD</Name>
      <Video>video_1080</Video>
      <Audio>aac_audio</Audio>
    </Rendition>
  </Playlist>
  <Encodes>
    <Audio>
      <Name>aac_audio</Name>
      <Codec>aac</Codec>
      <Bitrate>128000</Bitrate>
      <Samplerate>48000</Samplerate>
      <Channel>2</Channel>
      <BypassIfMatch>
        <Codec>eq</Codec>
      </BypassIfMatch>
    </Audio>
    <Video>
      <Name>video_360</Name>
      <Codec>h264</Codec>
      <Bitrate>365000</Bitrate>
      <Framerate>30</Framerate>
      <Width>640</Width>
      <Height>360</Height>
      <KeyFrameInterval>30</KeyFrameInterval>
      <ThreadCount>2</ThreadCount>
      <Preset>medium</Preset>
      <BFrames>0</BFrames>
      <ThreadCount>1</ThreadCount>
    </Video>
    <Video>
      <Name>video_720</Name>
      <Codec>h264</Codec>
      <Profile>high</Profile>
      <Bitrate>1500000</Bitrate>
      <Framerate>30</Framerate>
      <Width>1280</Width>
      <Height>720</Height>
      <KeyFrameInterval>30</KeyFrameInterval>
      <Preset>medium</Preset>
      <BFrames>2</BFrames>
      <ThreadCount>4</ThreadCount>
    </Video>
    <Video>
      <Name>video_1080</Name>
      <Codec>h264</Codec>
      <Bitrate>6000000</Bitrate>
      <Framerate>30</Framerate>
      <Width>1920</Width>
      <Height>1080</Height>
      <KeyFrameInterval>30</KeyFrameInterval>
      <ThreadCount>8</ThreadCount>
      <Preset>medium</Preset>
      <BFrames>0</BFrames>
    </Video>
  </Encodes>
</OutputProfile>

CrossDomain

Most browsers and players prohibit accessing other domain resources in the currently running domain. You can control this situation through Cross-Origin Resource Sharing (CORS) or Cross-Domain (CrossDomain). You can set CORS and Cross-Domain as <CrossDomains> element.

<CrossDomains>
    <Url>*</Url>
    <Url>*.airensoft.com</Url>
    <Url>http://*.ovenplayer.com</Url>
    <Url>https://demo.ovenplayer.com</Url>
</CrossDomains>

You can set it using the <Url> element as shown above, and you can use the following values:

Live Rewind

You can create as long a playlist as you want by setting <DVR> to the HLS publisher as shown below. This allows the player to rewind the live stream and play older segments. OvenMediaEngine stores and uses old segments in a file in <DVR><TempStoragePath> to prevent excessive memory usage. It stores as much as <DVR><MaxDuration> and the unit is seconds.

<HLS>
    ...
    <DVR>
        <Enable>true</Enable>
        <TempStoragePath>/tmp/ome_dvr/</TempStoragePath>
        <MaxDuration>3600</MaxDuration>
    </DVR>
    ...
</HLS>

OvenMediaEngine supports clustering and ensures high availability (HA) and scalability. For this we provide the OriginMap and OriginMapStore features. OriginMap is a method of configuring Origin server information in each Edge server, and OriginMapStore is a method for Origin servers and Edge servers to dynamically share information through Redis Server.

OriginMap

The OvenMediaEngine running as edge pulls a stream from an external server when a user requests it. The external server could be another OvenMediaEngine with OVT enabled or another stream server that supports RTSP.

The OVT is a protocol defined by OvenMediaEngine to relay stream between Origin-Edge and OVT can be run over SRT and TCP. For more information on the SRT Protocol, please visit the SRT Alliance site.

Origin

OvenMediaEngine provides OVT protocol for passing streams from the origin to the edge. To run OvenMediaEngine as Origin, OVT port, and OVT Publisher must be enabled as follows :

<Server version="5">
	<Bind>
		<Publishers>
			<OVT>
				<Port>9000</Port>
			</OVT>
		</Publishers>
	</Bind>
	<VirtualHosts>
    		<VirtualHost>
		    	<Applications>
				<Application>
					...
					<Publishers>
						<OVT />
					</Publishers>
				</Application>
			</Applications>
		</VirtualHost>
	</VirtualHosts>
</Server>

Edge

The role of the edge is to receive and distribute streams from an origin. You can configure hundreds of Edge to distribute traffic to your players. As a result of testing, a single edge can stream 4-5Gbps traffic by WebRTC based on AWS C5.2XLarge. If you need to stream to thousands of people, you can configure and use multiple edges.

The edge supports OVT and RTSP to pull stream from an origin. In the near future, we will support more protocols. The stream pulled through OVT is bypassed without being encoded.

To run OvenMediaEngine as Edge, you need to add Origins elements to the configuration file as follows:

<VirtualHosts>
    <VirtualHost>
        <Origins>
            <Properties>
                <NoInputFailoverTimeout>3000</NoInputFailoverTimeout>
                <UnusedStreamDeletionTimeout>60000</UnusedStreamDeletionTimeout>
            </Properties>
            <Origin>
                <Location>/app/stream</Location>
                <Pass>
                    <Scheme>ovt</Scheme>
                    <Urls><Url>origin.com:9000/app/stream_720p</Url></Urls>
                </Pass>
                <ForwardQueryParams>true</ForwardQueryParams>
            </Origin>
            <Origin>
                <Location>/app/</Location>
                <Pass>
                    <Scheme>OVT</Scheme>
                    <Urls><Url>origin.com:9000/app/</Url></Urls>
                </Pass>
            </Origin>
            <Origin>
                <Location>/</Location>
                <Pass>
                    <Scheme>RTSP</Scheme>
                    <Urls><Url>origin2.com:9000/</Url></Urls>
                </Pass>
            </Origin>
        </Origins>
    </VirtualHost>
</VirtualHosts>

The <Origin>is a rule about where to pull a stream from for what request.

The <Origin>has the ability to automatically create an application with that name if the application you set in <Location> doesn't exist on the server. If an application exists in the system, a stream will be created in the application.

<Properties>

NoInputFailoverTimeout (default 3000)

NoInputFailoverTimeout is the time (in milliseconds) to switch to the next URL if there is no input for the set time.

UnusedStreamDeletionTimeout (default 60000)

UnusedStreamDeletionTimeout is a function that deletes a stream created with OriginMap if there is no viewer for a set amount of time (milliseconds). This helps to save network traffic and system resources for Origin and Edge.

<Origin>

For a detailed description of Origin's elements, see:

Location

Origin is already filtered by domain because it belongs to VirtualHost. Therefore, in Location, set App, Stream, and File to match except domain area. If a request matches multiple Origins, the top of them runs.

Pass

Pass consists of Scheme and Url.

<Scheme> is the protocol that will use to pull from the Origin Stream. It currently can be configured as OVTor RTSP.

If the origin server is OvenMediaEngine, you have to set OVTinto the <Scheme>.

You can pull the stream from the RTSP server by setting RTSPinto the<Scheme>. In this case, the <RTSPPull> provider must be enabled. The application automatically generated by Origin doesn't need to worry because all providers are enabled.

Urls is the address of origin stream and can consist of multiple URLs.

ForwardQueryParams is an option to determine whether to pass the query string part to the server at the URL you requested to play.(Default : true) Some RTSP servers classify streams according to query strings, so you may want this option to be set to false. For example, if a user requests ws://host:port/app/stream?transport=tcp to play WebRTC, the ?transport=tcp may also be forwarded to the RTSP server, so the stream may not be found on the RTSP server. On the other hand, OVT does not affect anything, so you can use it as the default setting.

Rules for generating Origin URL

The final address to be requested by OvenMediaEngine is generated by combining the configured Url and user's request except for Location. For example, if the following is set

<Location>/edge_app/</Location>
<Pass>
    <Scheme>ovt</Scheme>
    <Urls><Url>origin.com:9000/origin_app/</Url></Urls>
</Pass>

If a user requests http://edge.com/edge_app/stream, OvenMediaEngine makes an address to ovt: //origin.com: 9000/origin_app/stream.

OriginMapStore

OriginMapStore is designed to make it easier to support autoscaling within a cluster. All Origin Servers and Edge Servers in the cluster share stream information and origin OVT URLs through Redis. That is, when a stream is created on the Origin server, the Origin server sets the app/stream name and OVT url to access the stream to the Redis server. Edge gets the OVT url corresponding to the app/stream from the Redis server when the user's playback request comes in.

This means that existing settings do not need to be updated when extending Origin servers and Edge servers. Therefore, all Origins can be grouped into one domain, and all Edges can be bundled with one domain. OriginMapStore allows you to expand Origins or Edges within a cluster without any additional configuration.

OriginMapStore functionality has been tested with Redis Server 5.0.7. You can enable this feature by adding the following settings to Server.xml of Origin and Edge. Note that must be set in Server.xml of the Origin server. This is used when Origin registers its own OVT url, so you just need to set a domain name or IP address that can be accessed as an OVT publisher.

<VirtualHost>
    ...
    <OriginMapStore>
        <!-- In order to use OriginMap, you must enable OVT Publisher in Origin and OVT Provider in Edge. -->
        <RedisServer>
            <Host>192.168.0.160:6379</Host>
            <Auth>!@#ovenmediaengine</Auth>
        </RedisServer>

        <!-- This is only needed for the origin server and used to register the ovt address of the stream.  -->
        <OriginHostName>ome-dev.airensoft.com</OriginHostName>
    </OriginMapStore>
    ...
</VirtualHost>

Dynamic Application

It is either impossible or very cumbersome for edge servers to pre-configure all applications. So OriginMap and OriginMapStore have the ability to dynamically create an application if the application does not exist when creating the stream. They create a new application by copying the application configuration with <Name>*</Name>. That is, the special application with the name * is a dynamic application template.

<Applications>
    <Application>
        <Name>*</Name>
        <Type>live</Type>
        <OutputProfiles>
            ...
        </OutputProfiles>
        <Providers>
            <OVT />
        </Providers>
        <Publishers>
            <AppWorkerCount>1</AppWorkerCount>
            <StreamWorkerCount>8</StreamWorkerCount>
            <WebRTC>
                <Timeout>30000</Timeout>
                <Rtx>false</Rtx>
                <Ulpfec>false</Ulpfec>
                <JitterBuffer>false</JitterBuffer>
            </WebRTC>
            <LLHLS>
                <ChunkDuration>0.5</ChunkDuration>
                <SegmentDuration>6</SegmentDuration>
                <SegmentCount>10</SegmentCount>
                <CrossDomains>
                    <Url>*</Url>
                </CrossDomains>
            </LLHLS>
        </Publishers>
    </Application>
</Applications>

Load Balancer

When you are configuring Load Balancer, you need to use third-party solutions such as L4 Switch, LVS, or GSLB, but we recommend using DNS Round Robin. Also, services such as cloud-based AWS Route53, Azure DNS, or Google Cloud DNS can be a good alternative.

Overview

SignedPolicy is a module that limits the user's privileges and time. For example, operators can distribute RTMP URLs that can be accessed for 60 seconds to authorized users, and limit RTMP transmission to 1 hour. The provided URL will be destroyed after 60 seconds, and transmission will automatically stop after 1 hour. Users who are provided with a SignedPolicy URL cannot access resources other than the provided URL. This is because the SignedPolicy URL is authenticated.

SignedPolicy URL consists of the query string of the streaming URL with Policy and Signature as shown below. If SignedPolicy is enabled in the configuration of OvenMediaEngine, access to URLs with no signature or invalid signature is not allowed. Signature uses HMAC-SHA1 to authenticate all URLs except signature.

scheme://domain.com:port/app/stream?policy=<>&signature=<>

Policy

Policy is in json format and provides the following properties.

{
    "url_activate":1399711581,
    "url_expire":1399721581,
    "stream_expire":1399821581,
    "allow_ip":"192.168.100.5/32"
}

Signature

Signature is generated by HMAC-SHA1 encoding all URLs except signature query string. The generated Signature is encoded using Base64URL and included as a query string of the existing URL.

Base64URL.Encode(
    HMAC.Encrypt(
        SHA1,
        secret_key,
        "scheme://domain.com:port/app/stream[/file]?policy='encoded policy'>"
    )
)
